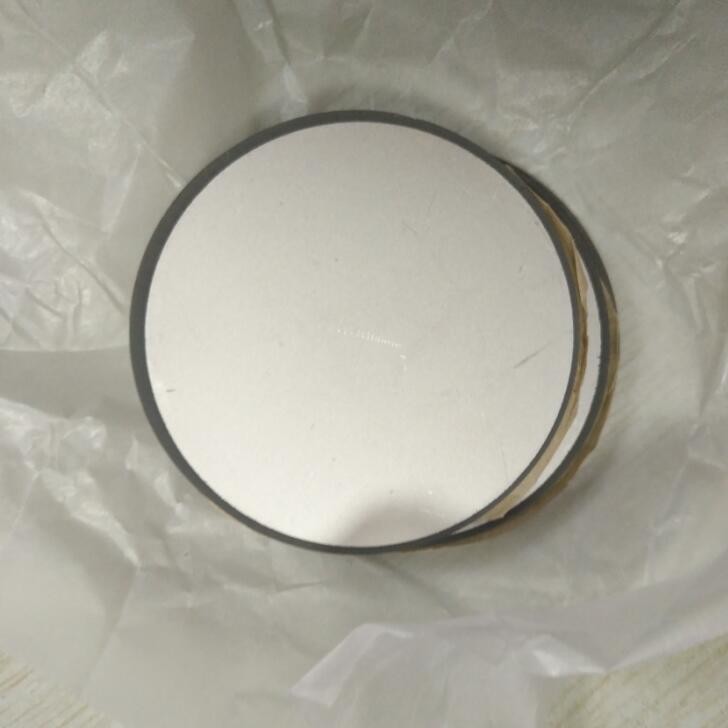

High Amplitude Piezoelectric Ring / Piezoelectric Plate Sensor For Ultrasonic Transducer

High Amplitude Piezoelectric Ring / Piezoelectric Plate Sensor For Ultrasonic Transducer

High Amplitude Piezoelectric Ring / Piezoelectric Plate Sensor For Ultrasonic Transducer supplier High Amplitude Piezoelectric Ring / Piezoelectric Plate Sensor For Ultrasonic Transducer supplier

Large Image :  High Amplitude Piezoelectric Ring / Piezoelectric Plate Sensor For Ultrasonic Transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $50--$120
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Materials: Pzt4,pzt5 ,pzt8 Or Other Required Material. Size.: Customize
Applications: All Kinds Of Ultrasonic Sensor.ultrasonic Transducer.Medical,ultrasonic Detectors And So On Advantage: High Efficiency High Amplitude Good Heat Resistance Good Construction:

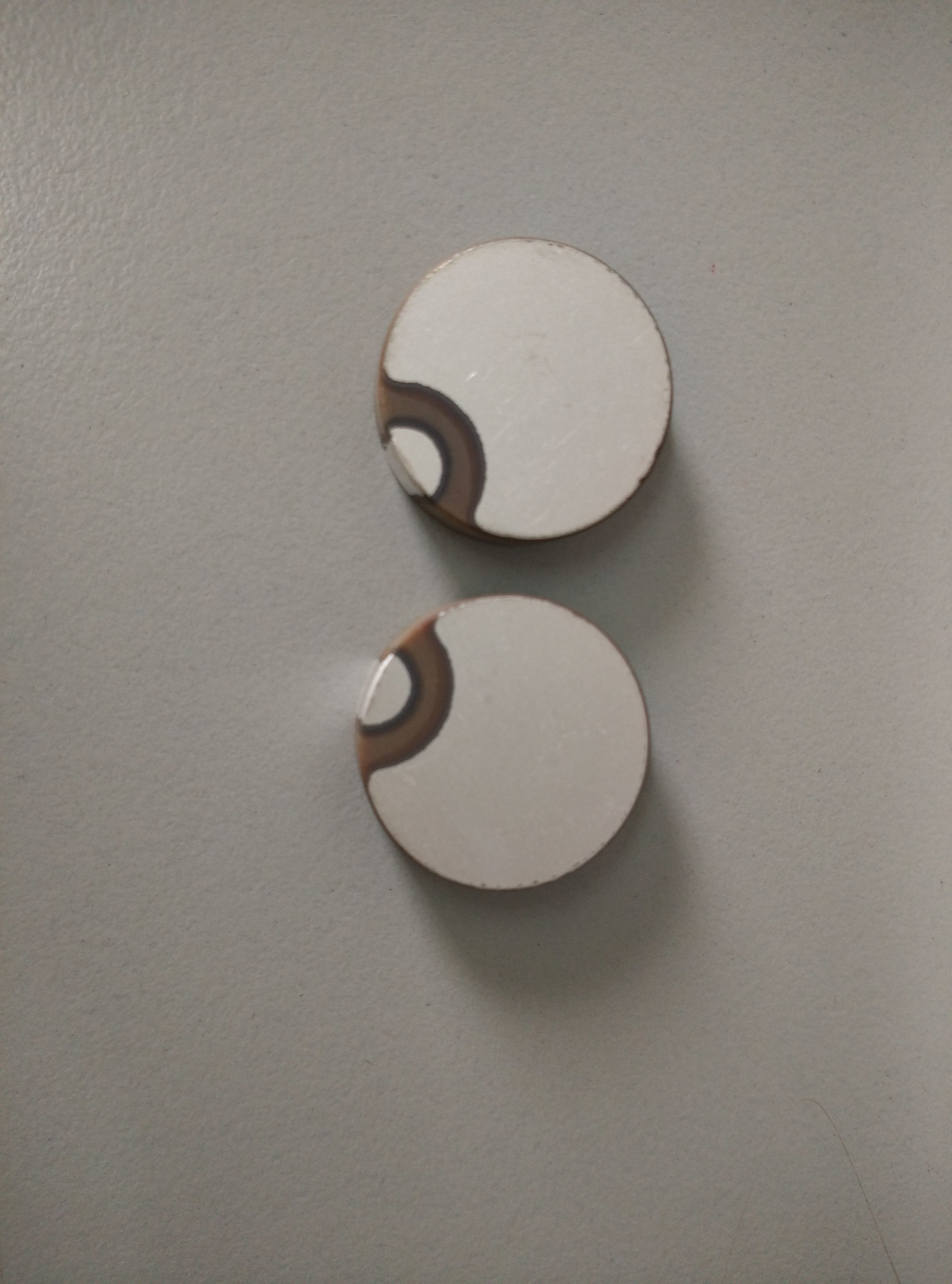

Piezo Ceramic Round, Ring, Tube Plate For Ultrasonic Transducer





Quick Detail of 42*15*5 Ring Piezoelectric Ceramic:
all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.
the materials have the pzt4,pzt5 ,pzt8 or other required material.


Description of 42*15*5 Ring Piezoelectric Ceramic:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.


Applications of 42*15*5 Ring Piezoelectric Ceramic:
widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on



Specifications of 42*15*5 Ring Piezoelectric Ceramic:

Dimensions

(mm)

Capacity

C (pF)

Weak field dissipation

Tgδ (12v)

 Strong field dissipation

Tg δ (400v)

Radial frequency

Fr(KHz)

Resonance impedance

Zm (∩ )

Thick frequency

Ft (KHz)

Coupling modulus

Kr (%)

Quality factor

Qm

Φ42*Φ15*5

2200±10%

≤0.5%

≤1.0%

40±5%

≤15

410

≥45

≥800



Competitive Advantage of 42*15*5 Ring Piezoelectric Ceramic:

◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
