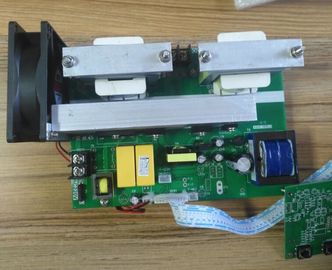

28KHz - 40 KHz Frequency Ultrasonic Circuit Board 160 X 360 X 300mm Outer Size

28KHz - 40 KHz Frequency Ultrasonic Circuit Board 160 X 360 X 300mm Outer Size

Large Image :  28KHz - 40 KHz Frequency Ultrasonic Circuit Board 160 X 360 X 300mm Outer Size

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $300-$600
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Working Frequency:: 28KHz -40 KHz Time Control:: 0--59'59"
Relative Humidity:: 40%-90% Range Of Power Control:: 0-100% Digital Control And Adjustment 16 Grades
Internal Over Temperature Protection:: 65C Outer Size:: 160x360x300mm

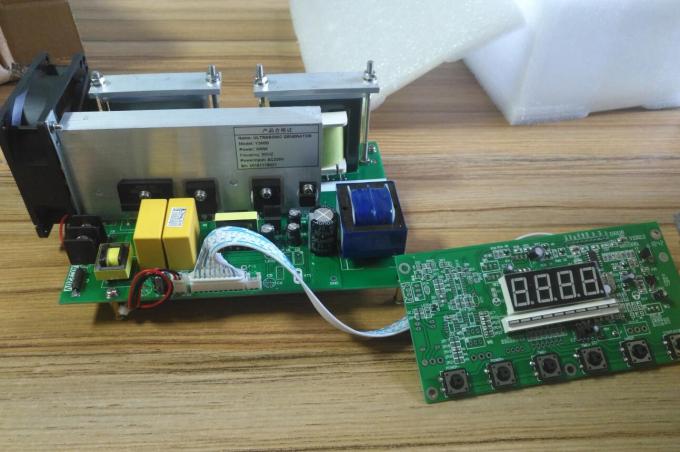

40K or 80K 300W Ultrasonic Circuit Board Driving Cleaning Transducers


Detail


In harmony with the global ultrasonic industry and with over ten years of experience in researching and using ultrasonic products, we depend on a special power source for ultrasonic cleaners, which adopt advanced microcomputer control techniques and a bran-new ideas in circuit design and is widely applied in the ultrasonic cleaning industry.


Description

The generator generates a signal of a specific frequency. This signal may be a sine signal or a pulse signal. The specific frequency is the frequency at which the transducer operates.
Ultrasonic equipment generally uses ultrasound frequencies of 20 KHz, 25 KHz, 28 KHz, 33 KHz, 40 KHz, 60 KHz, 80 KHz, 100 KHz or more, but have not been used in large quantities.





Type

X4-A-I

X4-A -II

X4-A-III

X4-A-IV

X4-M-V

Driven power

600W-900W

900W-1500W

1500W-2100W

2100W-2700W

3000W

Power Control
(Adjustable)

0-100%

0-100%

0-100%

0-100%

0-100%

Working Frequency

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

Working voltage

AC220V
10% 50HZ

AC220V
10% 50HZ

AC220V
10% 50HZ

AC220V
10% 50HZ

AC220V
10% 50HZ

Max.numbers of
transducers

12-18pcs 60W

12-30pcs 60W

12-42pcs 60W

12-54pcs 60W

12-60pcs 60W

Rated Current
per transducer

0.1-0.17A

0.1-0.17A

0.1-0.17A

0.1-0.14A

0.1-0.14A

Output  Current
range

1-3A

1-4.5A

1-6A

1-7A

1-7.5A

Time Control
Range

0-59’59”

0-59’59”

0-59’59”

0-59’59”

0-59’59”

Environment
temperature

0-40℃

0-40℃

0-40℃

0-40℃

0-40℃

Relative Humidity

40%-90%

40%-90%

40%-90%

40%-90%

40%-90%

Net  weight

10KG

11KG

12KG

12KG

12KG

Dimension (mm)

390×350×130

390×350×130

390×350×130

390×350×130

390×350×130





Environment temperature:0-40C°
Relative humidity:40%--90%
Working frequency:28KHz(40 KHz,80 KHz,135 KHz)   5%
Range of power control: 0~100%     Digital control and adjustment of 16 grades
Internal over temperature protection:65 C°




Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
