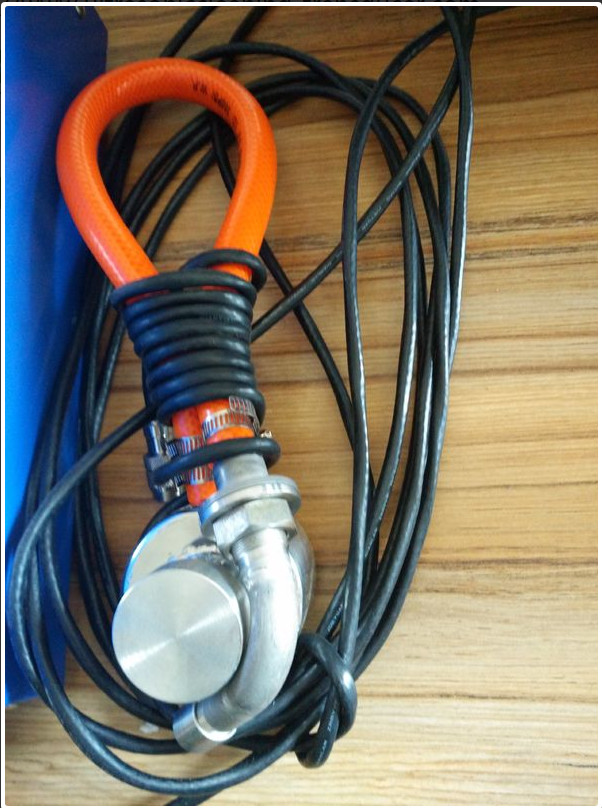

Ultrasonic Vibrating Sieve Transducer to Match with Around 1m Diameter Screen
Resonance Impedance: 20-40
Static Capacity: 5000
Input Power: 100W
Ultrasonic vibrating screen is the ultrasonic generator and vibrating screen together
new products, the principle is to 220 v, 50 hz or 110 v, 60 hz power
can be converted into high frequency electric energy of 18 to 40 KHZ, reoccupy perfectly
on the sieve box ultrasonic vibrator head will be high frequency electric energy into mechanical energy,
make the invisible to the naked eye of supersonic vibration sieve surface,
makes the ultra micro powder accept huge ultrasonic acceleration,
the material on the surface of the screen always stay suspended state,
and thus dampen adhesion, friction, pancake, wedging, such as screen blocking factors,
thus achieve the purpose of efficient screening and network, makes the ultra micro powder screening
for easy. Especially suitable for high quality, fine powder of users.
1. The piezoelectric ceramic chip adopts high quality parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.
1. To achieve high accuracy, high mesh screening at the same time,
the control of a narrow particle size range.
2. Can be used single layer and multilayer.
3. Screen self-cleaning function: greater than 500 mesh sieve,
no mesh plug, no attenuation screening efficiency.
4. Solve the strong adsorption, easy to reunite, electrostatic, high precision,
high density, high light specific gravity and other screening problem.
5. Screening accuracy can improve the 1-70%, yield can increase 0.5 to 10 times.
We are dedicated to research and development in the ultrasonic field
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Our headquarter is located in Beijing, China. Our manufacturing base is in Baoding, Hebei province. Cheng-cheng Weiye also has two branches in Shenzhen and Zhangjiagang and two sales agents in Japan and the USA. At present, there are five departments of the company comprising R&D, Production, Domestic Sale, Export and After-sales service.
We accept paypal or T/T, western union etc.
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
