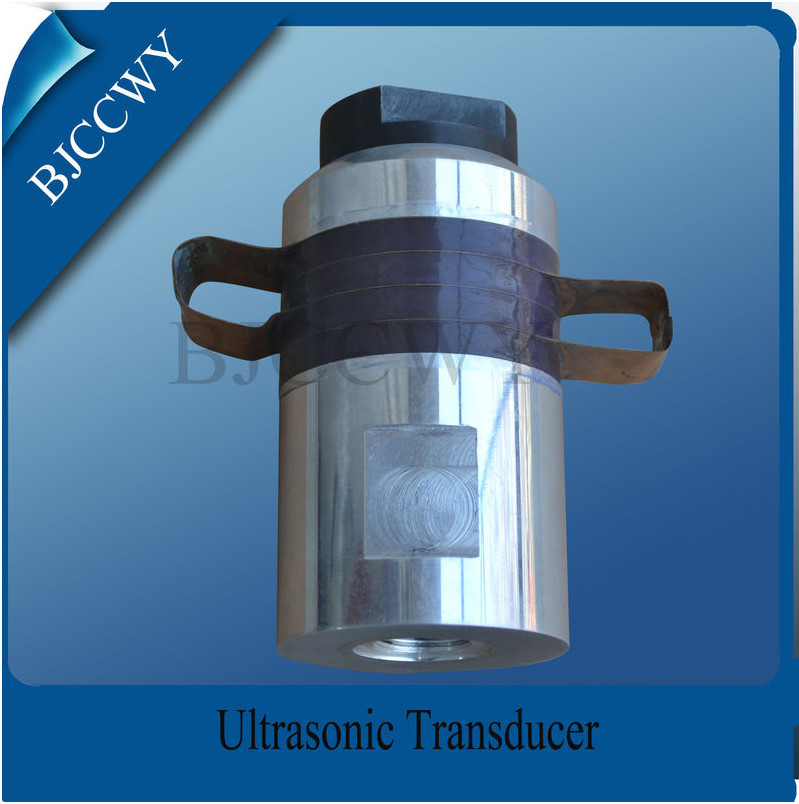

High Power Industrial Ultrasonic Transducer In Ultrasonic Drilling Machine

High Power Industrial Ultrasonic Transducer In Ultrasonic Drilling Machine

Large Image :  High Power Industrial Ultrasonic Transducer In Ultrasonic Drilling Machine

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCH-5050F-15Z P4

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: 6USD-12 USD
Packaging Details: protection carton
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Full-length:: 171 Joint Bolt(mm):: M18x1.5
Frequency(Khz): 15 Resonance Impedance:: 12
Capacity(pF):: 12500 Input Power(W):: 1500



High Power Multi Frequency Ultrasonic Transducer in Ultrasonic Drilling Machine





High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.



To design and fabricate the transducers according to customers' requirements.





Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance Capacity(pf) Input Power(w)
CCH-5050F-15Z P4 171 M18x1.5 15 12 12500 1500
CCH-6060F-20Z P4 118 M20x1.5 20 15 15000 1800



Type: CCH-5050F-15Z P4

Full-length(mm): 171

Joint Bolt(mm): M18x1.5

Frequency(KHz): 15

Resonance Impedance: 12

Capacity(pf):12500

Input Power(w):1500





Feature
1. The piezoelectric ceramic chip adopts high quality parts, and can give a strong and

stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic

conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric

ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using

temperature range is wide.





The application of the ultrasonic transducer is very extensive, it according to the

application of the industry is divided into industry, agriculture, transportation,

life, medical and military etc. According to the functions are divided into ultrasonic

machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote

sensing, remote control, etc.; According to the working environment is divided into

liquid, gas, biology, etc.; According to the nature of the divided into power

ultrasound and detection of ultrasonic, ultrasonic imaging, etc.





Beijing Cheng -Cheng Weiye Science and Technology Co., Ltd established in 1999. we are a professional manufacturer in ultrasonic transducers, ultrasonic generator and piezoelectric ceramics.



The ultrasonic transducers include ultrasonic cleaning transducer, welding, drilling and polishing transducer, Ultrasonic smashing cell transducer, IC Banding Transducer, Ultrasonic collar cleaning transducer, Ultrasonic vibration transducer, ultrasonic transducer for beauty, ultrasonic atomizing transducer, ultrasonic distance sensor, tubular transducer equipment, ultrasonic cleaning generator, ultrasonic cell disruptor etc.



High Power Industrial Ultrasonic Transducer In Ultrasonic Drilling MachineHigh Power Industrial Ultrasonic Transducer In Ultrasonic Drilling Machine
