Atomizing Electric Piezo Ceramic Plate For Making Humidifier / Atomizer

Atomizing Electric Piezo Ceramic Plate For Making Humidifier / Atomizer

Large Image :  Atomizing Electric Piezo Ceramic Plate For Making Humidifier / Atomizer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Diameter Disc: 25mm Resonance Frequency: 1700KHz
Life Time: 5000h Certification: CE, ISO9001, ROSH
Water Level: 25-45mm Name: Piezo Ceramic Plate

Atomizing Piezo Ceramics for Making Humidifier and Atomizer Application
The piezoelectric element has piezoelectric effect, and the piezoelectric effect is reversible. The piezoelectric effect is applied stress in a particular direction along certain crystal, crystal polarization change, and change is proportional to the called positive piezoelectric effect, on the contrary and stress variables, an electric field on the crystal strain and strain resulted in proportional to the electric field is called inverse piezoelectric effect. Because of the piezoelectric effect, piezoelectric element can force, pressure, acceleration, temperature, quality and other non electrical quantity into electrical quantity according to certain rules, all kinds of sensors can be used to produce a detection, to achieve certain non electrical quantity conversion, control and transmission function, in the military and civil widely application. The piezoelectric sensor is the direct use of piezoelectric effect and inverse piezoelectric effect of piezoelectric material, the former is charge by the piezoelectric element generated by reflecting the size or change of measurement, which is measured by changes reflect changes in the piezoelectric element vibration or deformation.

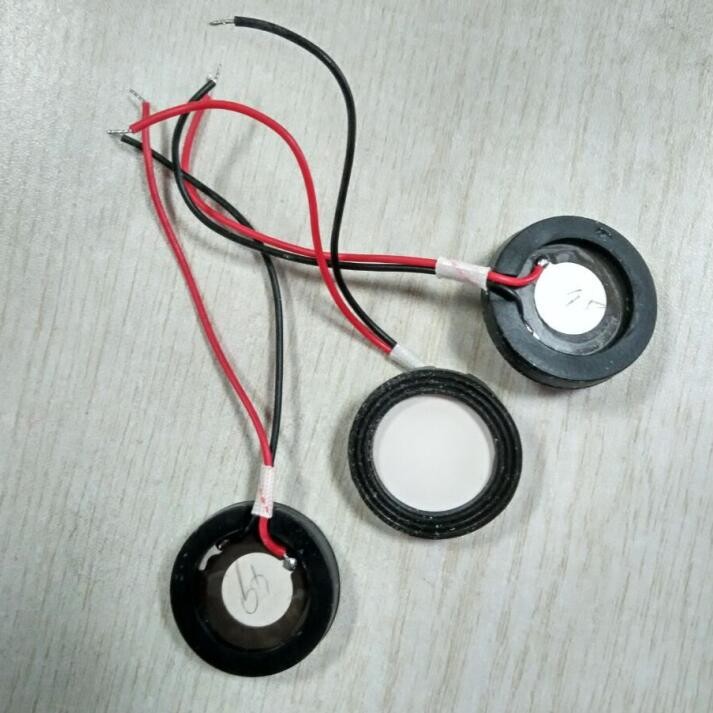

φ25mm glass glaze welding wire atomizing piezo disc


CCWYCCWY Series Ultrasonic Atomizing Transducer Piezo Disc
BElectrode protection by glass glaze
25Diameter Disc 25mm
17Resonance frequency 1700KHz
AWelding wire


No.ItemUnitStandardTest conditoin
2-1Thick resonant frequency (Fr)KHz1700±50HP5100 or ADVAN R3754 network analyzer
2-2Resonant impedance (Zr)ΩMax:2HP5100 or ADVAN R3754 network analyzer
2-3Electrical-mechanical coupling coefficient (Kt)Min:40%HP5100 (Fs3/Fs1)
2-4CapacitancePF1400-2300YD2166A capacitor analyzer /1KHz
2-5Dielectric lossMax:2%YD2166A capacitor analyzer/1KHz
2-6Working voltV[Vp-p]:80-120
2-7Water qualityDrinking water
2-8Water temperature20-50
2-9Water levelmm25-45
2-10Electrode materialAg
2-11Electrode protective materialGlass glaze
2-12MountingsWelding wire


2-13Wire pullNMin:20The pulling force is not more than 30 degrees along the lead, not less than 20N
2-14Life timeh5000Fixed water quality, water temperature and water level , standard power driven, cumulative work 5000 hours, fog reduction 20%.
2-15Exterior appearance

There is no foreign matter and black spot on the surface of the disc.

Non electrode Zone without foreign matter; In glazed area, there is no more than 3 black dots which is more than 0.2mm per square centimeter.
