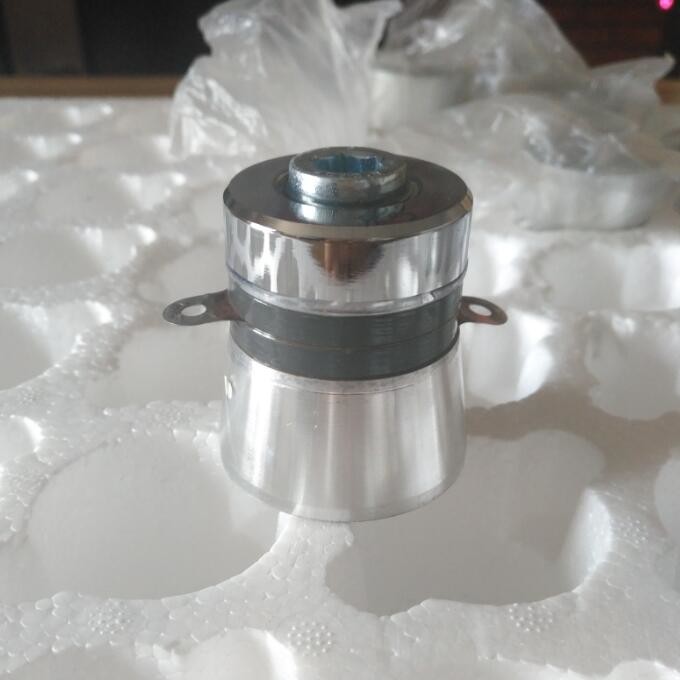

High Efficiency Heat Resistance 40K Piezoelectric Ultrasonic Transducer For Cleaning Industry

High Efficiency Heat Resistance 40K Piezoelectric Ultrasonic Transducer For Cleaning Industry

Large Image :  High Efficiency Heat Resistance 40K Piezoelectric Ultrasonic Transducer For Cleaning Industry

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Item: CCH-3130D-200LB P4 Length(mm): 42
Weight(g): 126 Frequency(KHZ): 200K
Resonance Impedance: <50 Input Power(w): 30


40K Piezoelectric Ultrasonic Cleaner Transducer for cleaning industry


Quick Detail

Transducer, also known as vibrator, is a device that converts the electrical energy and mechanical energy (sound wave vibration) by the piezoelectric effect of piezoelectric ceramics and amplifies the acoustic impedance matching front and rear radiation cover blocks.
Ultrasonic cleaning ultrasonic vibration generated by the transducer, cavitation occurs in the water generated by the instantaneous impact of high-pressure foam was washed to achieve a good cleaning effect.


Description

ultrasonic cleaning transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.


Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

Naming methods as following:

High Efficiency Heat Resistance 40K Piezoelectric Ultrasonic Transducer For Cleaning Industry

High Efficiency Heat Resistance 40K Piezoelectric Ultrasonic Transducer For Cleaning Industry

Specifications

 ultrasonic cleaning transducer:


Type

Length

(mm)

Weigh

(g)

Frequency

(KHz)

Resonance
Impedance
(Ω)

Static
Capacity
(pF)±10%

Input
Power
(W)

CCH-3130D-200LB pzt-4

42

126

200

<50

3200

30





Type

Length(mm)

Weight (g)


Frequency(KHz)±4%


Resonance Impedance
(Ω)


Static Capacity
(pF)±10%


Input Power(W)

CCH-5839D-25/50LB
PZT-4


8054025/50<35490040

CCH-4039D-80/38ZB
PZT-4

6133038/80<35480040

CCH-4039D-100/40ZB
PZT-4

5428040/100<35320040
CCH-5839D-25/50/80 PZT-48054025/50/80<40500035

CCH-4039D-100/73/40
PZT-4

5626040/73/120<40510035

CCH-4039D-120/80/40
PZT-4

5626040/80/120<40510035

CCH-5839D-25/50/80/120
PZT-4

8054025/50/80/120<45520030

CCH-4039D-120/170/80/40
PZT-4

5626040/80/120/170<45540030


 Ultrasonic cleaning transducers generally use the horn-type composite matrix structure (which is Lan Jie Wenzizhu structure), which consists of front and rear metal cover, piezoelectric ceramic wafer, prestressed screw, electrode sheet, and insulating sleeve. Apply appropriate prestress, the transducer in high-power, high-amplitude conditions have good electromechanical conversion efficiency.
Ultrasonic cleaning transducer is a continuous work of the power transducer, generally the average continuous operation to calculate the constant and its power size.
