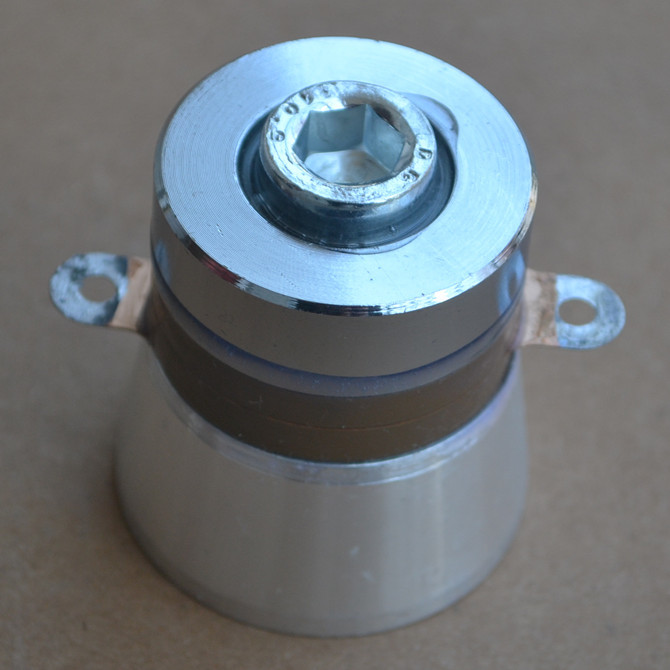

Multi Frequency Vibration High Power Ultrasonic Transducer For Cleaner

Multi Frequency Vibration High Power Ultrasonic Transducer For Cleaner

Large Image :  Multi Frequency Vibration High Power Ultrasonic Transducer For Cleaner

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $50--$120
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description


Multi frequency Ultrasonic Cleaning Vibration Transducer for Cleaner


Quick Detail

High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.


Description

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Applications

widely used in ultrasonic welding machine.ultrasonic polishing machine and ultrasonic drilling machine.

The application of the ultrasonic transducer is very extensive, it according to the
application of the industry is divided into industry, agriculture, transportation,
life, medical and military etc. According to the functions are divided into ultrasonic
machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote
sensing, remote control, etc.; According to the working environment is divided into
liquid, gas, biology, etc.; According to the nature of the divided into power
ultrasound and detection of ultrasonic, ultrasonic imaging, etc.


Specifications :



Type

Length

(mm)

Weight

(g)

Frequency

(KHz)

Resonance
Impedance
(Ω)

Static
Capacity
(pF)±10%

Input
Power
(W)

CCH-6845D-20LA
PZT-8

959102020-405000100

CCH-6850D-28LB
PZT-8

676662810-257000120

CCH-6845D-28LA
PZT-8

666252810-255000100

CCH-6845D-28LB
PZT-4

666242810-256600100

CCH-5838D-25LB
PZT-4

765242510-25540060

CCH-5938D-25LA
PZT-8

655252510-25380060

CCH-5938D-28LB
PZF-4

665102810-25380060

CCH-4535D-28ZB
PZT-4

824252810-25410050

CCH-6845D-30L
PZT-8

615503010-255000100

CCH-4838D-33LA
PZT-8

584203310-25380060

CCH-5038D-40LA
PZT-8

543004010-25380060

CCH-4535D-40LB
PZT-4

573004010-25410050

CCH-4838D-40ZB
PZT-8

563104010-25380060

CCH-4838S-50LA
PZT-4

401605030-60210030

CCH-3830D-54LA
PZT-4

361355410-25320035

CCH-4938D-68ZB
PZT-8

795356815-30380060

CCH-4038D-80ZB
PZT-4

532908015-30540060

CCH-4838D-120ZB
PZT-4

5725512015-30540060

CCH-4535D-135ZB
PZT-4

2821513515-30420050

CCH-5038D-25(40)LB
PZT-8 dual frequency

6544225 and 4015-30380060


Feature
1. Small machinery loss,
2. High efficiency electricity
3. Sound transfer,
4. Big swing and less heat.
5. Good construction
6. Easy to installation
7. High reliablity
