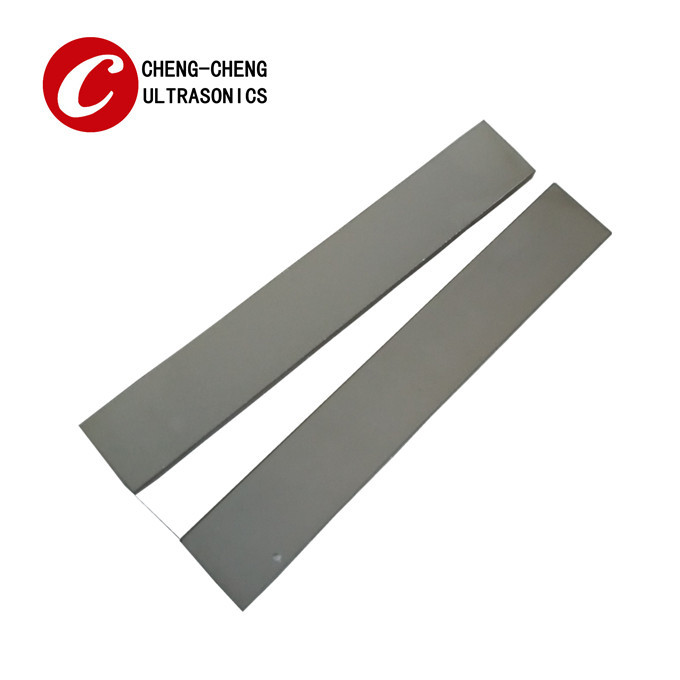

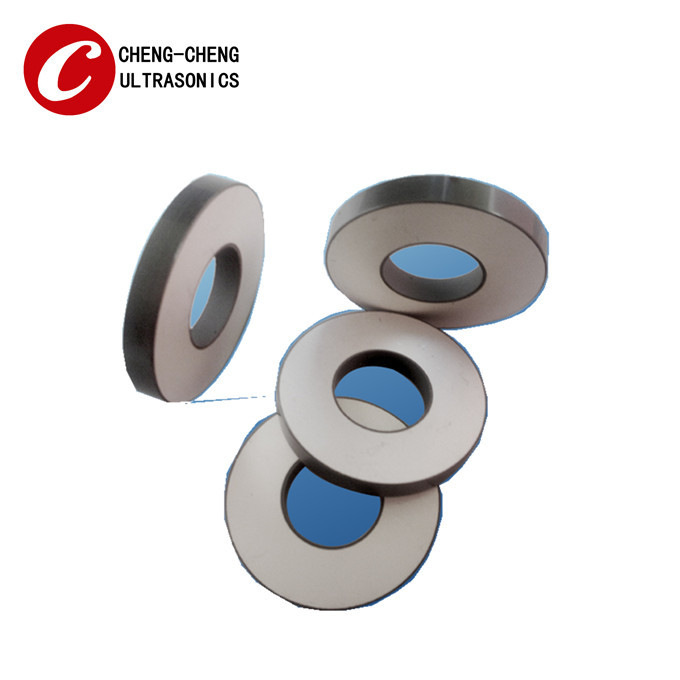

Customization size for Piezoelectric Ceramic P4 or P8 material

Customization size for Piezoelectric Ceramic P4 or P8 material

Customization size for Piezoelectric Ceramic P4 or P8 material supplier Customization size for Piezoelectric Ceramic P4 or P8 material supplier

Large Image :  Customization size for Piezoelectric Ceramic P4 or P8 material

Product Details:

Place of Origin: cn
Brand Name: CCWY
Certification: RoSH

Payment & Shipping Terms:

Minimum Order Quantity: 20~50
Packaging Details: normal packing
Delivery Time: 30 days
Supply Ability: 1000PCS +per Month
Detailed Product Description



Customization size for Piezoelectric Ceramic P4 or P8 material







Piezoelectric ceramic materials are electromechanical transducers: They can convert mechanical energy into electrical energy and vice-versa.  Piezoelectric ceramic material from us are used in sensors, actuators, gas ignition and in power transducers for high-power ultrasonic applications.







Piezoelectric ceramic  Material are used to convert mechanical parameters, such as pressure and acceleration, into electrical parameters or, conversely, to convert electrical signals into mechanical movement or vibration.



In sensors they make it possible to convert forces, pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers to convert electric voltages into vibrations or deformations.





Dimension(mm) Capacity C (pF)

Weak

Field

Dissipatio

Tgδ (12v)

Strong

Field

Dissip

ationTg δ

(400v)

Radial

Frequency
Fr(KHz)

Reso

nance

Impedance
Zm (Ω )

Thick FrequencyFt (KHz) Coupling Modulus Kr (%) Quality Factor Qm
Φ10xΦ5x2 240±10% ≤0.5% ≤1.0% 153±5% ≤15 1020 ≥45 ≥800
Φ16xΦ8x4 340±10% ≤0.5% ≤1.0% 95.8±5% ≤20 512 ≥45 ≥800
Φ25xΦ10x4 935±10% ≤0.5% ≤1.0% 65.5±5% ≤15 512 ≥45 ≥800
Φ30xΦ10x5 1150±10% ≤0.5% ≤1.0% 58.4±5% ≤15 410 ≥45 ≥800
Φ32xΦ15x5 1080±10% ≤0.5% ≤1.0% 49.2±5% ≤15 410 ≥45 ≥800
Φ35xΦ15x5 1430±10% ≤0.5% ≤1.0% 45.5±5% ≤15 410 ≥45 ≥800
Φ38xΦ15x5 1750±10% ≤0.5% ≤1.0% 43.4±5% ≤15 410 ≥46 ≥800
Φ40xΦ15x5 1970±10% ≤0.5% ≤1.0% 42.8±5% ≤15 410 ≥45 ≥800
Φ42xΦ15x5 2200±10% ≤0.5% ≤1.0% 40±5% ≤15 410 ≥45 ≥800
Φ42xΦ17x5 2110±10% ≤0.5% ≤1.0% 38.8±5% ≤15 410 ≥45 ≥800
Φ45xΦ15x5 2580±10% ≤0.5% ≤1.0% 38.1±5% ≤15 410 ≥46 ≥800
Φ50xΦ17x5 3160±10% ≤0.5% ≤1.0% 34.8±5% ≤15 410 ≥45 ≥800
Φ50xΦ17x6 2430±10% ≤0.5% ≤1.0% 34.8±5% ≤15 315 ≥45 ≥800
Φ50x3 5800±10% ≤0.5% ≤1.0% 46±5% ≤10 681 ≥50 ≥800





FRQ

PHYSICS ANSWERS

1. Reason to the existence of piezoelectricity?

The essential unit which is a rhomboid or cubic shaped cage made up of atoms exists in some atomic lattice structures. Inside the cell, the cage is responsible for holding single semi-mobile ion that has numerous quantum position states. By applying electric field or by distorting the cage (applied strain), the ions post state will consequently shift. The basis or transformation to internal electric field shifts from mechanical strain is provided by coupling between the cage and central ion.



2. How can poling and depoling in piezoceramic materials? Be explained?

The piezoceramics should undergo high electric field for a sometime for the alignment of randomly oriented micro-dipoles in their proper formulation since the chemical composition is not simply responsible for the piezoelectric property of ceramics. This is called “poling” due to alignment resulted from application of high voltage. a “dislodging stress” is exerted on the micro-dipoles due to the application of electric field in the opposite direction if tried. There is only temporary change in polarization if low level field are applied since it bounces back on removal. There is also partly degradation of the polarization along with partial loss of properties when medium fields are applied. Polarization in opposite direction will be resulted if high fields are applied.



3. Is there a possibility of using piezoceramic actuators at cryogenic temperatures?

The answer is yes. From down to zero degrees Kelvin, allpiezo actuators continue to function even though it may appear counter-intuitive. Since electric fields cannot be changed by temperature at all and the inter-atomic electric fields are the basis for the piezoelectric effect, the most common piezoceramics does decrease due to piezo coupling as temperature drops. Most importantly the motion of most materials drops to about one-seventh of that measured at room at liquid helium temperatures.



HANDLING & PREPARATION ANSWERS

1.What is the process of cutting up a sheetofpiezoceramic into desirable sizes?

A special diamond saw is used for cutting ceramic. By using a straight edge or a razor blade, small prototype parts can be cut from piezoceramic sheet stock for making controlled break and to score the piezo surface. This method yield repeated cuts or straight-sided parts even with practice. This is something once must choose himself.



2.What is the process of bonding piezoceramic to different structures?

In many applications, two parts epoxies and Cyanoacrylate have shown great help. To get better results one must explain his boding requirements to an expert or by contacting the manufacturer of these materials. The operations include:

  1. The metal surfaces to be joined
  2. Temperature of operation
  3. Any unusual shear stress requirements

3.Is there any truth to piezoceramic sheets being really fragile?

Care should be taken while handling Single sheet piezoceramic as they are very fragile. They will shatter if they are dropped and when a metal shim is applied in order to bond together two piezo sheets, the piezo sheets turn rugged enough to be dropped without getting damaged like most standard bending elements.



4.What is the process of making electrical contact on the piezoceramicside attached downwards?

Between the piezo part and the metal substrate the most effective technique is to create a conductive bond. One electrical lead is connected to the outward side of the piezoceramic sheet while on electrical lead is connected to the substrate especially when the substrate is plastic or glass. At a position of the downside of the ceramic a wire is needed to be soldered. During the boding of piezo sheet to the substrate, a consistent ‘overhang’, ‘dish’, ‘cutout’ should be used to the wire may have room.



5.The removal of the electrode

The electrode can be removed by a few methods which include, sandblast, laser ablate, chemically etch and sandpap



APPLICATION ANSWER

1.The frequency limit of apiezoceramic sheet and some properties?

Usually the frequency limits of applications are ascertained through the resonances involved with the transducer design and its size and shape. For a piezoceramic sheet, there is no limit for inherent frequency. A sheet of PSI-5A material which is 2.85″ square, .0075″ thick has planar dilatation mode of about 14 KHz and of 13 MHz of thickness mode vibration in the neighborhood. Limiting factors can arise such as the resistive heating of electrodes when considerable current is gathered at large surface area parts during ultrasonic frequencies.

2.Is there any truth to piezo transducers being used as static and dynamic force sensors?

Due to charge leakage the Piezo transducers cannot be used for static force measurements. For transient force measurements they can be applied successfully for only0.1 second.



3.The expected life of piezoelectric material?

There are no tests yet that can determine the “fatigue life”. Our facility has had an operational piezo fan since 1982. Such calculations must involve voltages and mounting.



4.How does temperature effectpiezoceramic transducers?

The pyroelectric properties of piezoceramic are responsible for the appearance of voltage through the any piezo transducer electrodes due to temperature changes. Almost each and every property of piezoceramics is affected by temperature. There exists no general manner regarding it. In accordance to your experiment and calculations, the dependence must be looked upon in that context.

PIEZO TECHNOLOGY ANSWERS

1.What is the process of eliminating vibration through piezoceramics?

The process of vibration cancellation can be achieved through attaching two piezoceramic sheets to the outer surface of the object. They should be close to the point (in a beam) where undesired bending needs to be controlled.The first sheet is used to measure the strain on the surface. The data from a strain sensor is put into a smart box. This gadget controls the power amplifier which consequently drives second sheet.As a result, the mechanically induced movement from second sheet produces vibrations into the structure, which counter the other vibrations.



2.Is there a possibility of Piezo technology replacing magnetic technology anytime in the future?

The possibility of Piezo technology replacing magnetic technology is not possible. Magnetic technology is based on force without physical contact. On the other hand, Piezo technology is purely derived from forces having direct contact from bodies.For instance, Piezo actuators have the capability of making all solenoids obsolete. However, they are heavier which is why it is highly improbably that magnetic technology will be forgotten because of Piezo technology.The main interest in Piezo actuators is because of the solenoids ability to work on less powe
