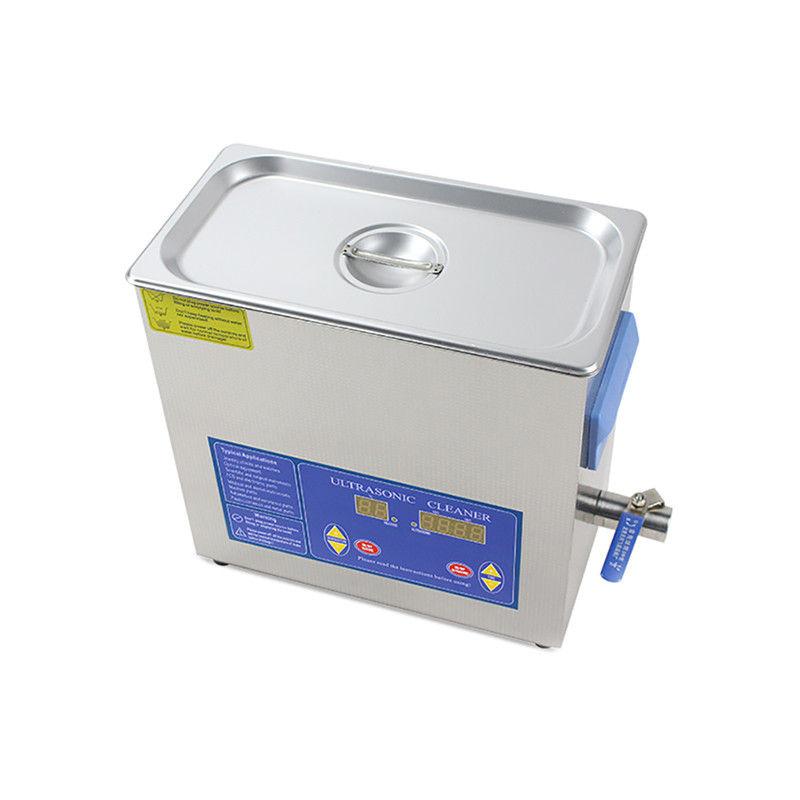

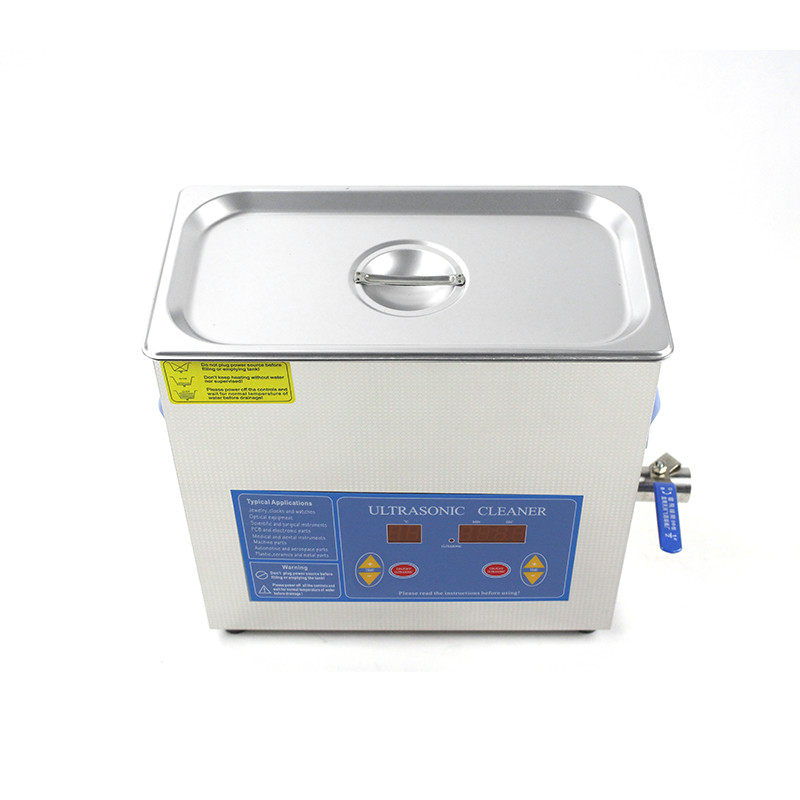

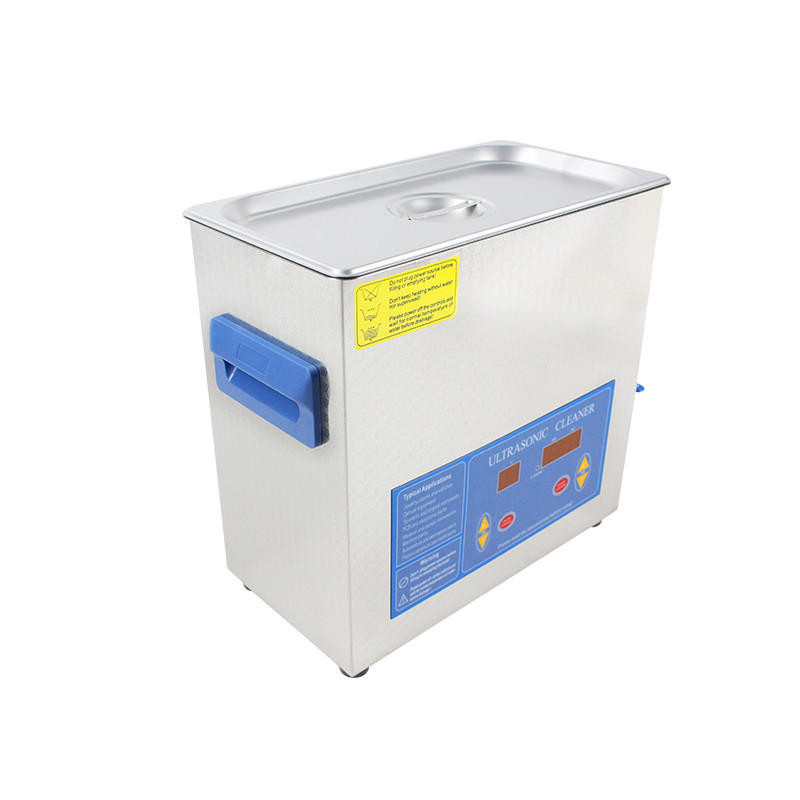

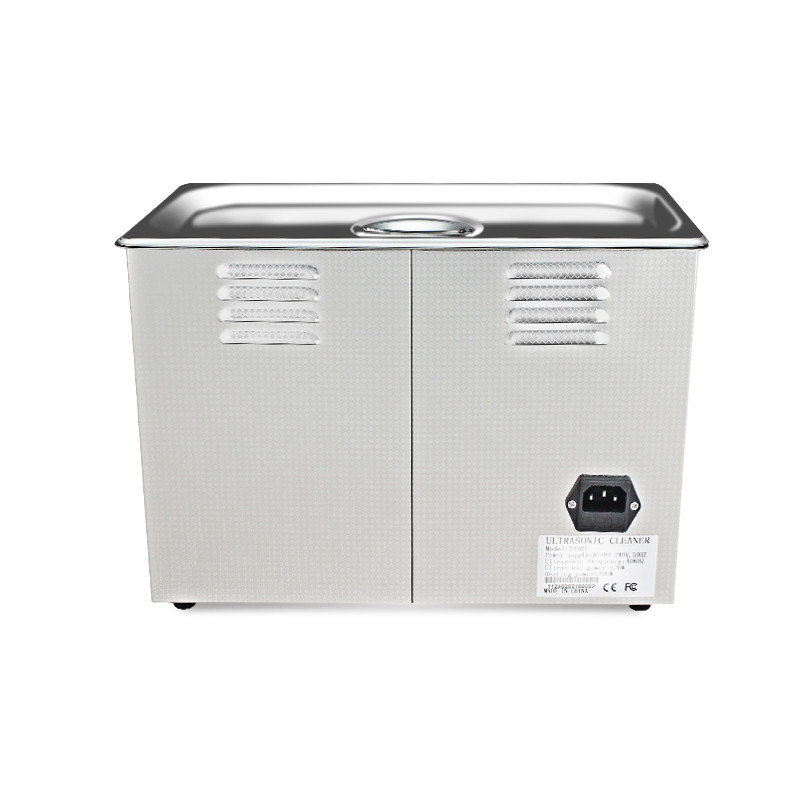

Ultrasonic Cleaning Machine 6L Heated with Digital Timer Jewelry Watch Glasses Cleaner

Ultrasonic Cleaning Machine 6L Heated with Digital Timer Jewelry Watch Glasses Cleaner

Ultrasonic Cleaning Machine 6L Heated with Digital Timer Jewelry Watch Glasses Cleaner supplier Ultrasonic Cleaning Machine 6L Heated with Digital Timer Jewelry Watch Glasses Cleaner supplier Ultrasonic Cleaning Machine 6L Heated with Digital Timer Jewelry Watch Glasses Cleaner supplier Ultrasonic Cleaning Machine 6L Heated with Digital Timer Jewelry Watch Glasses Cleaner supplier

Large Image :  Ultrasonic Cleaning Machine 6L Heated with Digital Timer Jewelry Watch Glasses Cleaner

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY-6L

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $210-$220
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 5000 PER MONTH
Detailed Product Description
Model: CCWY-6L Voltage (V): 220V
Ultrasonic Power: 150W Heating Power: 300W
Application: Industrial Cleaning Machine



1L,1.3L, 2L, 3L 6L 9L 13L 20L 27LUltrasonic Cleaner Heated Ultrasonic Cleaner with Digital Timer Jewelry Watch Glasses Cleaner





SPECIFICATIONS



Model CCWY- 6L
Voltage AC100~120V, 40Hz
AC220~240V, 40Hz
Frequency 40KHz
Power 150W
Heating Power 300W
Tank capacity 6L
Tank size(mm) 300×155×150(L×W×H)
Overall size(mm) 422×275×390(L×W×H)
Unit weight 7KG
Lid Have
Heating Have
Drainage Have
Cleaning basket Optional



































Quick Detail of Ultrasonic Cleaner:

The ultrasonic cleaner is a microprocessor-controlled device that uses ultrasonic or high frequency sound waves to clean jewelry and other delicate items. Ultrasonic cleaning is based on the cavitation effect caused by high frequency ultrasonic wave vibration signals in fluid. Microscopic bubbles that expand and rapidly collapse cause cavitation, which creates an effective cleaning action on the surface of object being cleaned. Additionally, the bubbles are small enough to penetrate even microscopic crevices, cleaning them thoroughly and consistently.

High efficiency saves cleaning solvent, thermal energy, work place and labor!

Three sets of built-in powerful transducers can strengthen the ultrasonic power and make superior cleaning outcome. It is utilization of digital program in ultrasonic cleaner to control the unit, according to the quantity and condition of the items to be cleaned to choose a working cycle time. As a result, it is more convenient and efficient than hand wash, steam cleaners, high pressure water jet cleaning or other machines.

Advanced Brushed Stainless Steel Cleaning Tank to avoid corrosion water stain and keep the tank looking always new.

(In comparison, the common stainless steel cleaning tanks will be dirty yellow corrosion water stain on the surface after a long time of using, and it's hard to be removed.)



Applications of Ultrasonic Cleaner:



In all of the cleaning method, ultrasonic cleaning is the highest efficiency, the effect of one of the best, so ultrasonic cleaning can achieve such effect, with its unique working principle and cleaning method closely related. We know, in production and life, need to clean a lot of things, need to clean and type of link also many, for example: remove contaminants, dredge the objects tiny holes, common manual cleaning method of alien objects and object shelter undoubtedly cannot meet the requirements, even steam cleaning and high pressure water jet cleaning also cannot satisfy the requirement of high cleanness-degree, of ultrasonic cleaning objects can also achieve kill bacteria, soluble organic pollutants, avoid corrosion, therefore, ultrasonic cleaning is increasingly widely used in many fields:

(1) machinery industry: rustproof oil removal, Measuring the cleaning; Mechanical parts oil removal derusting, Engine, carburetor and automobile parts of cleaning, Filters, of filter dredge cleaning, etc.

(2) the surface treatment industry: preplated oil removal derusting, Ion plating before cleaning; Phosphorprocess; Remove carbon deposition; Remove oxide skin; Remove polishing compound; The metal workpieces surface activation treatment etc.

(3) instrumentation industry: precision parts high cleanness-degree cleaning before assembly etc.

(4) electronics industry: printed circuit board except rosin, welding spot, High-pressure contacts such mechanical electronic parts of cleaning, etc.

(5) the medical industry: medical equipment of cleaning and disinfection, sterilization, experimental vessels cleaning, etc.

(6) semiconductor industry: semiconductor chip high cleanness-degree cleaning.

(7) clocks first, decoration industry: remove oil, dirt, oxidation layer, polishing compound etc.

(8) chemical, biological industry: the experiment the vessels of cleaning, divides dirty.

(9) the optical industry: optical device oil removal, except perspiration, soot cleaning, etc.

(10) of the textile industry: cleaning textile spindle, the spinneret etc.

(11) petrochemical: metal mesh cleaning dredge and chemical container, switch cleaning, etc.



  • Durable stainless steel construction.
  • Ultrasonic cleaning and heating can work at the same time.
  • High efficiency cleaning for teeny blot particles.
  • Perfect for cleaning the longhole, finedraw and shelter of piece part or workpiece, no need to touch cleaning fluid by your hands.
  • Large digital timer and temperature display for precise wash time and temperature control.
  • CE, FCC and RoHS Approved.
  • Built-in Powerful Transducer can strengthen the ultrasonic power and make superior cleaning outcome
  • Stainless steel cleaning basket for cleaning some small objects which need less friction, it can reduce the friction between the small objects and the tank.
  • Stainless steel tight fitting lid with handle to prevent water heat from diffusing.
  • Drains with Flow Control Valve for easy cleaning and rinsing
  • Skidproof rubber feet.
  • Use only tap water for general cleaning, you also can add about 5-10 ML of detergent into water to enhance wash result when needed.
  • Save cleaning solvent, thermal energy, work place and labor.




Competitive Advantage of Ultrasonic Cleaner:

Compared with other kinds of cleaning method, ultrasonic cleaning machines showed great superiority. Especially in specialization, collectivization production enterprise, has gradually with ultrasonic cleaning machines replaced the traditional dip, scrub, pressure flushing, vibration cleaning and steam cleaning process method. Ultrasonic applize high efficiency and high cleanness, thanks to its sound waves in a medium transmission are produced when penetrability and cavitation shock wave. So easily with complicated appearance, inner cavity and fine empty parts clean, for most of the oil removal, rust, phosphating process, such as in ultrasonic under the action of just two or three minutes to finish, its velocity than traditional method can improve the several times to dozens of times, cleanness can achieve high standard, which in many to product surface quality and productivity to demand higher occasions, the more showcases with other treatment methods are hard to achieve or irreplaceable results.
