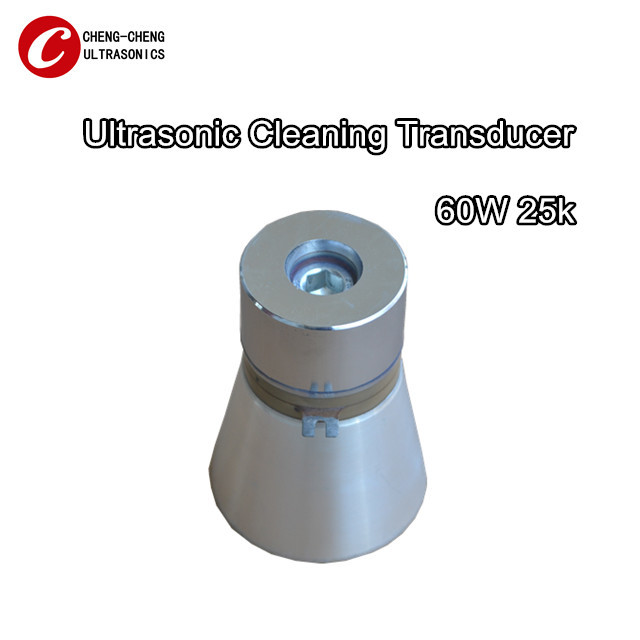

60W 25K Ultrasonic Cleaner Vibration Piezoelectric Transducer

60W 25K Ultrasonic Cleaner Vibration Piezoelectric Transducer

Large Image :  60W 25K Ultrasonic Cleaner Vibration Piezoelectric Transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Item: CCH-5938D-25LB Pzt-4 Length(mm): 77
Weight(g): 530 Frequency(KHZ): 25
Resonance Impedance: 10-20 Ω Input Power(w): 60



60W 25K Ultrasonic Cleaner Vibration Piezoelectric Transducer



Quick Detail



25khz 60w ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.





Description



25khz60w ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:



60W 25K Ultrasonic Cleaner Vibration Piezoelectric Transducer



60W 25K Ultrasonic Cleaner Vibration Piezoelectric Transducer

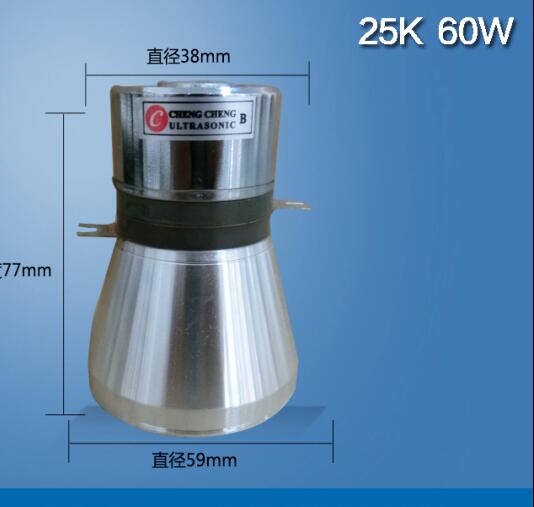

Specifications



25khz60w ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-5938D-25LB

PZT-4

77

530

25

10-20

5400

60



Competitive Advantage



25khz60w ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

60W 25K Ultrasonic Cleaner Vibration Piezoelectric Transducer
