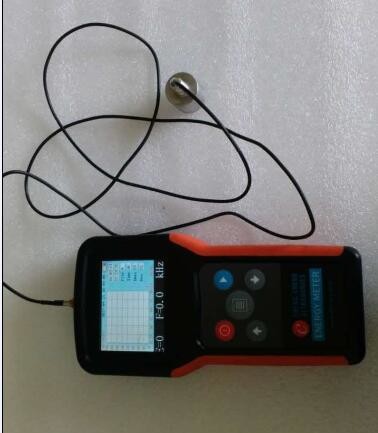

Intensity and Frequency Testing Ultrasonic Meter 3.7V Lithium rechargeable battery
Measure the ultrasonic power,frequency of ultrasonic system.
Ultrasonic sound pressure meter DBSonics series is occurred in the measurement of
ultrasonic cleaning tank of the intensity of ultrasonic measuring instruments (pressure).
The measuring instrument is measuring the instantaneous value of ultrasonic cleaning
machine wash force and average designed for the development of portable sound
pressure meter, the ultrasonic irradiation in the cleaning fluid at the surface of the fluid
surrounding the pressure as ultrasonic cleaning machine wash are determined by a net
force. Can be used to detect ultrasonic intensity distribution in ultrasonic cleaning tank,
ultrasonic cleaning machine ultrasonic device, such as the adjustment of examination,
the wash effect of management, industrial parts, and the analysis and research of the
ultrasonic irradiation intensity and wash effect, etc.
|
Type |
DBS-200S |
|
Measuring Range |
0 -255 w/in2 |
|
Measuring Frequency |
10 kHz – 200 kHz |
|
Data Display |
Color display, time and energy curve, maximum value, minimum value, average value, record file number, ultrasonic frequency |
|
Data storage |
Time, frequency, instantaneous energy, continuous recording 48 hours, 360K point data(0.5”/point) |
|
Electric Source |
3.7V Lithium rechargeable battery |
|
Detector Material |
Stainless steel sealing pipe |
|
Fluid Temperature |
0℃-150℃ |
|
Detector Diameter |
25mm |
|
Detector Length |
1.0 m；0.5mStainless steel Detector+0.5m cable |
|
Frequency showing |
Yes |
|
Data upload |
Yes |
|
Computer analysis software
|
Yes(additional cost) |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.
Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
