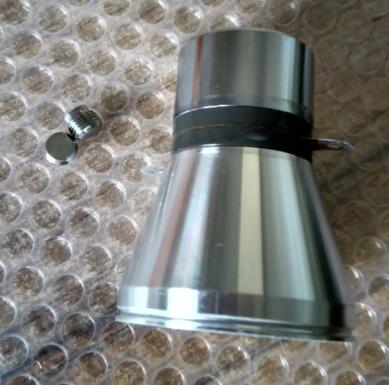

25K/45KHZ Double Frequency Multi Frequency Ultrasonic Transducer
Quick Detail
three frequency ultrasonic transducer
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Description
Ultrasonic cleaning transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Ultrasonic wave in the liquid along the direction of the sound generated by the flow of the phenomenon known as the straight flow.Acoustic intensity0.5W/cm2
When Naked eye can see straight Inlet flow, vertical to the vibration surface flow, the flow rate is about
10cm/s. The micro oil dirt on the surface of the cleaning object is stirred and the dirt is mixed by the direct flow.
The surface cleaning liquid also generates convection, the solution of the dissolved liquid and the new liquid mixture, so that the dissolution rate is accelerated, the removal of dirt from the great work Use.
Specifications
Type |
Length (mm)
|
Weigth(g)
|
Frequency(khz)
|
Resonance Impedance(Ω) |
Capacity (Pf)±10﹪
|
Power(w)
|
CCH-6438D-25/45 KHZ P8 |
65 |
442 |
25/45 |
10-20 |
3800 |
60 |
