Application Ultrasonic Plastic Welder, Acoustic, Magnetic Expansion Material
Impedance analyzer is mainly applicable to objects for various types of ultrasound device impedance measurement, including: piezoelectric ceramics, transducer, ultrasonic cleaning machine, ultrasonic plastic welder, acoustic, magnetic expansion material, ultrasonic disintegrator, ultrasonic atomization, ultrasonic cleaning, ultrasonic ranging, ultrasonic milk, ultrasonic cleaning, ultrasonic motor, and so on all the use of ultrasound equipment.
Impedance analyzer is characterized by: easy to use, indicators and graphics combination, accurate parameters, low prices, the production of a very strong guidance.

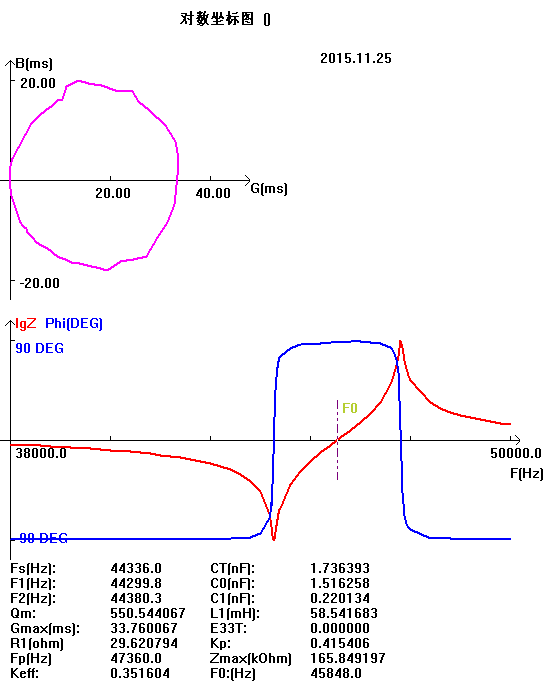

Impedance measurement of piezoelectric devices is a prerequisite for the correct use of the device. For piezoelectric devices, by the impedance analyzer can get the main parameters, including resonant frequency FS, anti resonant frequency FP, half power point of F1 and F2, maximum admittance Gmax, electrostatic capacitance C0, dynamic reactor R1, dynamic capacitance C1, dynamic inductance L1, free capacitance CT, free dielectric constant, mechanical quality factor QM, mechanical and electrical coupling coefficient keff, KP, K31, k33, and can draw pressure electric device five characteristic curve (admittance characteristic diagram, characteristic impedance, admittance polar pattern and impedance polar diagram, logarithmic plots).
|
Type |
C220 |
C320 |
|
Frequency Range |
1KHZ-500Khz |
1Khz-1Mhz |
|
Measurement Index |
All parameter, graphics |
|
|
Measurement Accuracy |
< 1% |
< 0.5% |
|
Measurement Speed |
10 second/piece(equivalent to 600 scan dots) |
5 second/piece(equivalent to 600 scan dots) |
|
Frequency Accuracy |
±15ppm |
±5ppm |
|
Phase Resolution |
0.15 degree |
0.15 degree |
|
Enviroment temperature |
10-40 cº |
10-40 cº |
|
Impedance Range |
1Ω～1MΩ |
1Ω～1MΩ |
|
Frequency Step |
0.1Hz～any |
0.1Hz～any |
|
Application |
Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical |
Inspection production line of piezoelectric ceramic below 1MHz |
Frequency Range: 1KHZ-1MHz
Min.Frequency Step: 0.1HZ
Measurement accuracy: < 0.5%
Measurement speed: five seconds per pieces(equivalent to 600 scan dots)
Frequency accuracy: ±5ppm
Phase Accuracy: 0.15 degree
Enviroment temperature: 10-40 cº
Impedance Range: 1Ω～1MΩ
Frequency step: less than 1MHZ
Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
