CCWY 10khz - 1mhz Ultrasonic Impedance Frequency Intensity Meter Analyser

1PCS
MOQ
CCWY 10khz - 1mhz Ultrasonic Impedance Frequency Intensity Meter Analyser
Features Gallery Product Description Request A Quote
Features
Specifications
Measuring Range: 0 -255 W/in2
Measuring Frequency: 10kHz - 1MHz
Electric Source: 3.7V Lithium Rechargeable Battery
Detector Material: Stainless Steel Sealing Pipe
Fluid Temperature: 0℃-150℃
Detector Diameter: 25mm
High Light:

ultrasonic impedance frequency intensity meter analyser

,

1mhz ultrasonic impedance

,

10khz ultrasonic transducer impedance

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

10kHz - 1MHz Ultrasonic Impedance Frequency Intensity Meter Analyzer







Ultrasonic sound pressure meter DBSonics series is occurred in the measurement of
ultrasonic cleaning tank of the intensity of ultrasonic measuring instruments (pressure).
The measuring instrument is measuring the instantaneous value of ultrasonic cleaning
machine wash force and average designed for the development of portable sound
pressure meter, the ultrasonic irradiation in the cleaning fluid at the surface of the fluid
surrounding the pressure as ultrasonic cleaning machine wash are determined by a net
force. Can be used to detect ultrasonic intensity distribution in ultrasonic cleaning tank,
ultrasonic cleaning machine ultrasonic device, such as the adjustment of examination,
the wash effect of management, industrial parts, and the analysis and research of the
ultrasonic irradiation intensity and wash effect, etc.











Type

DBS-1000S

Measuring

Range

0 -255 w/in2

Measuring Frequency

10 kHz – 1MHz

Data Display

Color display, time and energy curve, maximum value, minimum value,

average value, record file number, ultrasonic frequency

Data storage

Time, frequency, instantaneous energy, continuous recording 48 hours,

360K point data(0.5”/point)

Electric Source

3.7V Lithium rechargeable battery

Detector Material

Stainless steel sealing pipe

Fluid Temperature

 0℃-150℃

Detector Diameter

25mm

Detector Length

1.0 m;0.5mStainless steel Detector+0.5m cable

Frequency showing

Yes

Data upload

Yes

Computer analysis software



Yes(additional cost)

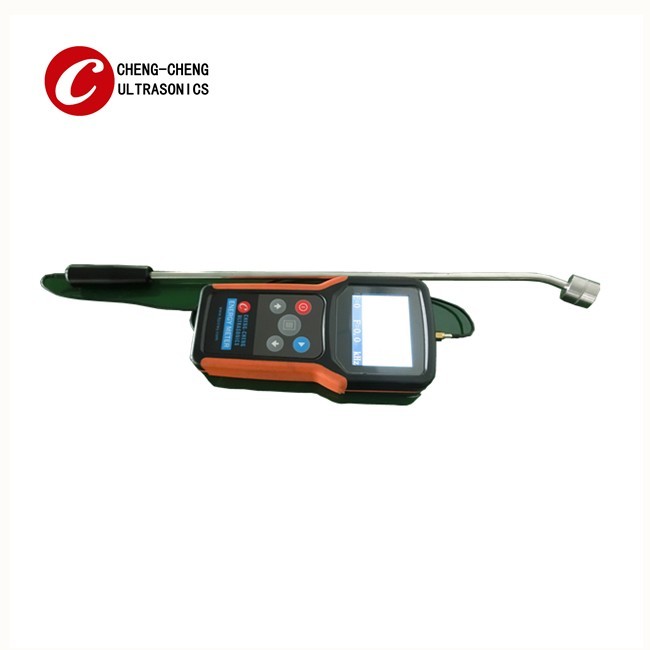

CCWY 10khz - 1mhz Ultrasonic Impedance Frequency Intensity Meter Analyser 0



Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.



Payment:

We accept paypal or T/T, western union etc.



Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy.

Or as your requested by sea or other express, according to your quantity.



Certification:

CE, ISO9001, ROSH
