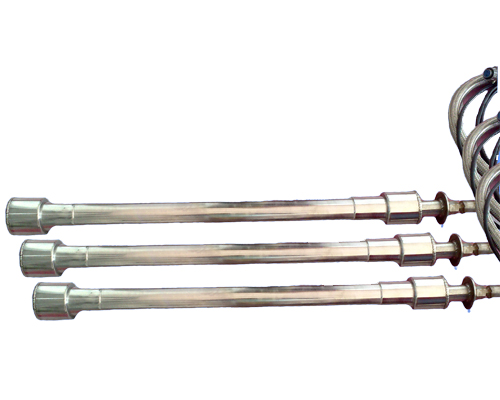

Tubular Ultrasonic Reactor Refinement Of Biodiesel From Scavenge Oil
Description:
Since cavitation occurs on all outside areas of the tube, ultrasonic energy distribution in the tank
is very uniform, with an excellent cleaning effect.
The output power of the tubular transducer equipment is not affected by the depth of solution, capacity
of bath,
variation of solution temperature and so on.
Thanks to structural tubular equipment, the application range is wider than a conventional transducer
equipment. It is best matched to vacuum and high pressure cleaning and chemical processing.
It has one and half to two times the life can be maintained compare with conventional transducer
equipment.
The round shape makes it possible to install very simply in every place so that the designing of the
bath is
simple.
The tube structure guarantees watertightness.
Applications:
It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutica
l industry.
In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation,
homogenization, refining and catalyzing reaction and it can increase production capacity.
The tubular transducer equipment plays an important role in the even stirring of homogenates
in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles.
The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used
in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than
tenfold. Therefore, it will have expansive applications in the petro-chemical industry.
|
Tubular Equipment Type |
Frequency (KHz) |
Ultrasound Output(W) |
Calabash Length (mm) |
Length (mm) |
Diameter (mm) |
Static Capacity (pF±10%) |
|
CC-1 |
15-28 |
1000 |
140 |
500 |
50-55 |
68000 |
|
CC-2 |
15-28 |
1100 |
260 |
620 |
50-55 |
68000 |
|
CC-3 |
15-28 |
1200 |
430 |
790 |
50-55 |
68000 |
|
CC-4 |
15-28 |
1300 |
597 |
957 |
50-55 |
68000 |
|
CC-5 |
15-28 |
1500 |
763 |
1123 |
50-55 |
68000 |
|
CC-6 |
15-28 |
2000 |
940 |
1300 |
50-55 |
132000 |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional
manufacturer in ultrasonic transducers,
ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a
new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into
an easy task. This product has been widely used in distillation, mix and mill for various chemical
procedures
and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your
requested by
sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
