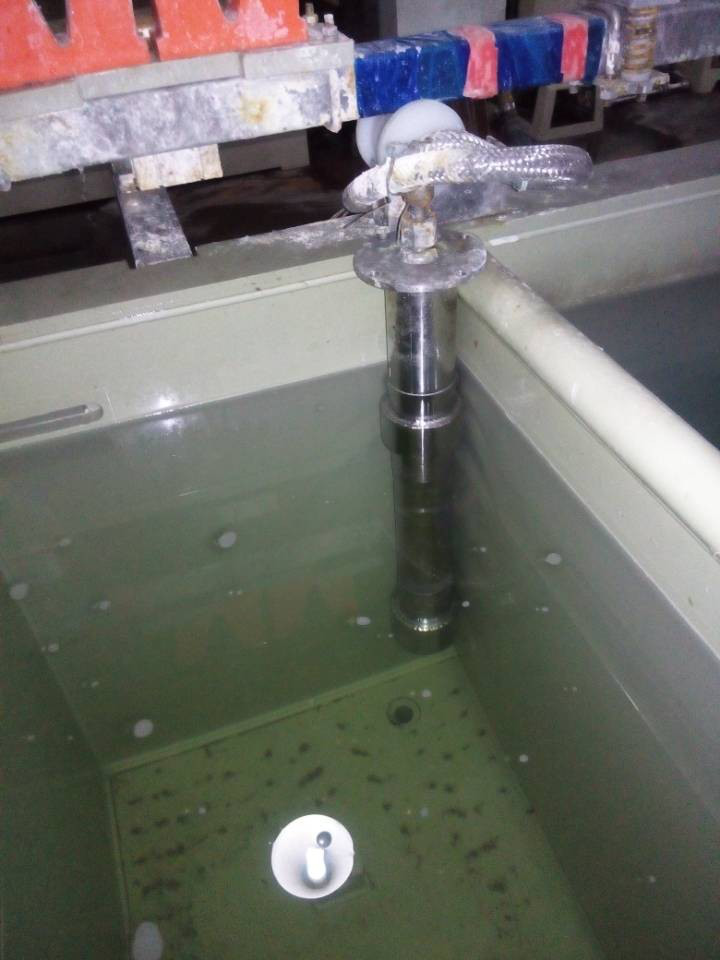

Titanium Alloy Tubular Reactor , Ultrasonic Reactor 25khz 2000w Vibration In Liquid

1PCS
MOQ
$2000-3000
Price
Titanium Alloy Tubular Reactor , Ultrasonic Reactor 25khz 2000w Vibration In Liquid
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

ultrasound transducer

,

Piezo ceramic transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



Titanium Alloy Tubular Reactor , Ultrasonic Reactor 25khz 2000w Vibration In Liquid


Quick Detail



 Titanium Alloy Ultrasonic Tubular Transducer :


Ultrasonic vibration rod is the use of ultrasonic in the transmission process of the existence of the positive and negative pressure cycle, in the positive phase, have squeezed medium molecule, increase the density of the original medium; negative phase, medium molecular sparse, discrete, medium density decreases. Ultrasonic vibration rod can be around 360 degrees even produce ultrasonic, and the energy output from the liquid level, temperature and other effects of load change, the ultrasonic vibration rod consists of high power ultrasonic transducer, horn and tool head (emitter), used to generate ultrasonic vibration, and the vibration energy transmitted to the liquid. Transducer converts the electrical energy input into mechanical energy, i.e., ultrasonic wave. Its form is the transducer in the longitudinal motion back and forth, the amplitude is generally in a few microns. Such amplitude power density is not enough, can not be used directly. Amplitude bar according to the design needs to enlarge the amplitude, isolation of the reaction solution and transducer, but also play a role in fixing the entire ultrasonic vibration system. The utility model is connected with an amplitude variable rod, and the ultrasonic energy is transmitted to the tool head through the amplitude variable rod, and then the ultrasonic energy is transmitted into the chemical reaction liquid by the tool head.



Description



 Titanium Alloy Ultrasonic Tubular Transducer :

Since cavitation occurs on all outside areas of the tube, ultrasonic energy distribution in the tank is very uniform, with an excellent cleaning effect.
The output power of the tubular transducer equipment is not affected by the depth of solution, capacity of bath, variation of solution temperature and so on.
Thanks to structural tubular equipment, the application range is wider than a conventional transducer equipment. It is best matched to vacuum and high pressure cleaning and chemical processing.
It has one and half to two times the life can be maintained compare with conventional transducer equipment.
The round shape makes it possible to install very simply in every place so that the designing of the bath is simple.
The tube structure guarantees watertightness.


Applications of 15KHZ 1300W Titanium Alloy Ultrasonic Tubular Transducer :

It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical industry. In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation, homogenization, refining and catalyzing reaction and it can increase production capacity. The tubular transducer equipment plays an important role in the even stirring of homogenates in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles. The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than tenfold. Therefore, it will have expansive applications in the petro-chemical industry.

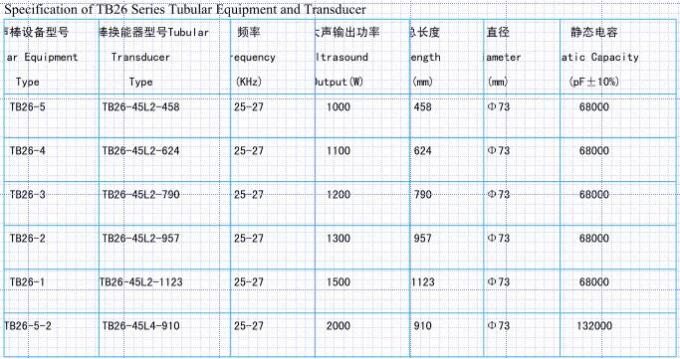

Specifications of Titanium Alloy Ultrasonic Tubular Transducer :

 Titanium Alloy Tubular Reactor , Ultrasonic Reactor 25khz 2000w Vibration In Liquid 0






Titanium Alloy Ultrasonic Tubular Transducer :

◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:



Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.



Payment:

We accept paypal or T/T, western union etc.



Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification: ø

CE, ISO9001, ROSH
