Emulsification Titanium Tubular Transducer Ultrasonic Reactor Powerful

1PCS
MOQ
$2000-3000
Price
Emulsification Titanium Tubular Transducer Ultrasonic Reactor Powerful
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

Ultrasonic biodiesel reactor

,

ultrasound transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

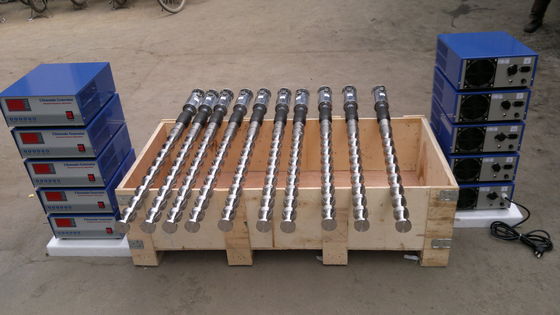

Emulsification Titanium Tubular Transducer Ultrasonic Reactor Powerful



The powerful ultrasonic happened in the liquid, with the change of ultrasonic pressure,

liquid will appear cavitation bubble which is in the generation, compression,

cracking process to form thousands of degrees, thousands of high pressure high temperature,

high pressure reaction field. Using the ultrasonic reaction field, the conventional methods used so far and

unable to achieve compounds synthesis variable as possible. Have shown that ultrasonic wave has

obviously promote the effect of chemical reaction, is expected to improve the technical level of the chemical,

pharmaceutical and food industry, and open up a new field of technology, new technological

changes induced

by utilizing ultrasonic wave.



Description:

Since cavitation occurs on all outside areas of the tube, ultrasonic energy distribution in the tank

is very uniform, with an excellent cleaning effect.

The output power of the tubular transducer equipment is not affected by the depth of solution,

capacity of bath,

variation of solution temperature and so on.

Thanks to structural tubular equipment, the application range is wider than a conventional transducer

equipment. It is best matched to vacuum and high pressure cleaning and chemical processing.

It has one and half to two times the life can be maintained compare with conventional transducer

 equipment.

The round shape makes it possible to install very simply in every place so that the designing of the bath is

simple.

The tube structure guarantees watertightness.



Applications:

It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical

industry.

In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation,

homogenization, refining and catalyzing reaction and it can increase production capacity.

The tubular transducer equipment plays an important role in the even stirring of homogenates

in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles.

The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used

in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than

tenfold. Therefore, it will have expansive applications in the petro-chemical industry.



Tubular Equipment

Type

Frequency

(KHz)

Ultrasound

Output(W)

Calabash Length

(mm)

Length

(mm)

Diameter

(mm)

Static Capacity

(pF±10%)

CC-1

15-28

1000

140

500

50-55

68000

CC-2

15-28

1100

260

620

50-55

68000

CC-3

15-28

1200

430

790

50-55

68000

CC-4

15-28

1300

597

957

50-55

68000

CC-5

15-28

1500

763

1123

50-55

68000

CC-6

15-28

2000

940

1300

50-55

132000





Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional

manufacturer in ultrasonic transducers,

ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a

new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into

an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures

and has received much praise from our customers.



Payment:

We accept paypal or T/T, western union etc.



Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by

sea or other express, according to your quantity.



Certification:

CE, ISO9001, ROSH
