Resonance And Half Power Frequency Ultrasonic Impedance Analyzer For Ceramic Ultrasonic Transducer
Testing Resonance Frequency and Half Power Frequency Ultrasonic Analyzer

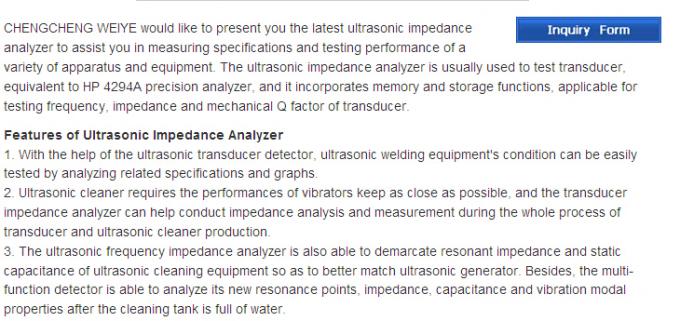

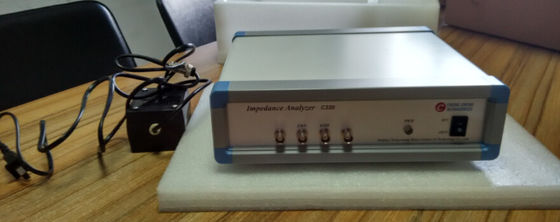

Impedance analyzer is the instrument applicable for measuring impedance-vs- frequency and phase-vs-frequency characteristics of complex impedance electrical components, as for instance: ultrasonic devices, piezoelectric ceramics and piezoelectric transducers for ultrasonic cleaners and ultrasonic plastic welders, underwater acoustic transducers, sensors, magnetostrictive transducers, and for many other industrial and medical applications.
Frequency Range |
Min. Frequency Step |
Measurement accuracy |
Measurement speed | Frequency accuracy | Phase Accuracy | Enviroment temperature | Impedance Range | Frequency step |
1KHZ-1MHz | 0.1HZ | < 0.5% |
five seconds per pieces (equivalent to 600 scan dots) |
±5ppm | 0.15 degree | 10-40 cº | 1Ω~1MΩ | less than 1MHZ |

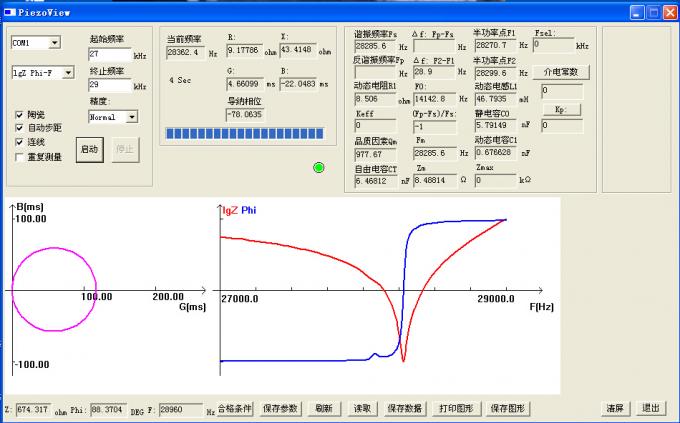

Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
