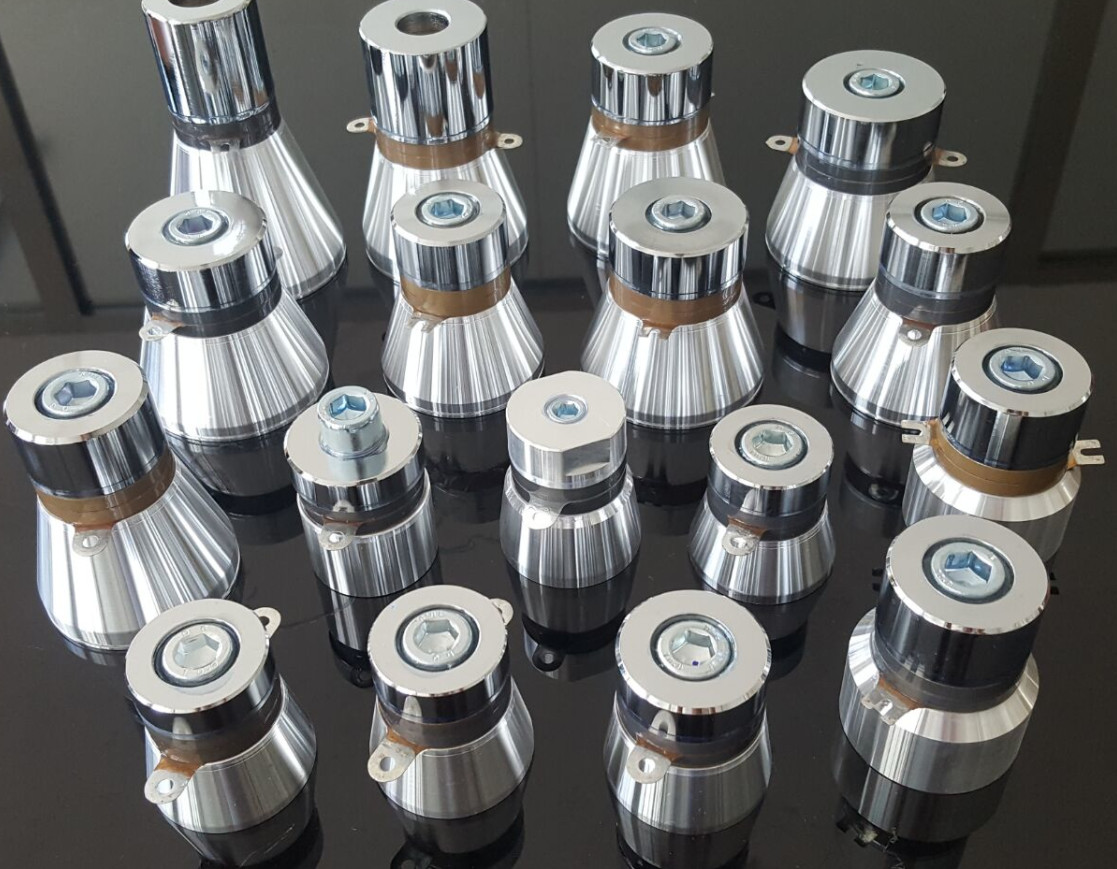

Frequency Ceramics CE 35w 120k Ultrasonic Piezo Transducer

1PCS
MOQ
$10--$15
Price
Frequency Ceramics CE 35w 120k Ultrasonic Piezo Transducer
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 35W
Frequency: 40K/80K/120K
Material: Aluminum, Stainless Steel
Usage: Ultrasonic Cleaning
Length: 56mm
Weight: 260g
High Light:

CE Ultrasonic Piezo Transducer

,

35w 120k Ultrasonic Piezo Transducer

,

CE 120khz Ultrasonic Transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description





Ultrasonic Frequency Piezo Ceramics Transducer





Description

1.good heat resistance



2. large range of working temperature



3.low resonance impedance and heat productivity



4.good construction



5.fastened by bolt



6.easy for assembling





Specifications









Type Length(mm) Weight (g) Frequency(KHz)±4%

Resonance Impedance

(Ω)

Static Capacity

(pF)±10%

Input Power(W)

CCH-7145D-20LA PZT-8



94



900



20



≤20





5200



100



CCH-6645D-25LB PZT-4

77



717



25



≤20



6800



100



CCH-6650D-28LB PZT-4

69



746



28



≤20



        7900

120



CCH-6645D-28LB PZT-8

66



625



28



≤20



5200



100



CCH-6645D-28LB PZT-4

66



614



28



≤20



6800



100



CCH-6645D-30L PZT-8

64



551



30



≤20



        5200

100



CCH-5938D-25LB PZT-4

77



530



25



≤20



4900



60



CCH-5938D-28LB PZT-8

68



470



28



≤20



3700



60



CCH-4535D-28ZB PZT-4

73



407



28



≤20



        3950

50



CCH-4838D-33LB PZT-8

62



420



33



≤20



4700



60



CCH-4938D-40LA PZT-8

55



307



40



≤20



3700



60



CCH-4538D-40ZB PZT-4

57



301



40



≤20



4700



60



CCH-4535D-40LB PZT-4

48



254



40



≤20



        4300

50



CCH-4535D-40ZB PZT-4

53



234



40



≤20



        4200

50



CCH-3830D-54LA PZT-4

36



132



54



≤20



         3500

35



CCH-4938D-70ZB PZT-8

80



468



                 70

≤20



5000



60



CCH-4038D-82ZB PZT-4

62



316



82



≤20



4900



60



CCH-3938D-100ZB PZT-4           53      289                 100

≤20





        4600          40
CCH-3938D-124ZB PZT-4

59



365



124



≤20



5200



60



CCH-3735D-133ZBL PZT-4

54



215



133



≤20



3900



50



CCH-4535-170ZB PZT-4           55     238                  170

≤50



        4200          50
CCH-3130D-200LB PZT-4           42     126                  200

≤50



        3200          30



Service

Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.


Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional  manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new  product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy  task. This product has been widely used in distillation, mix and mill for various chemical procedures and  has received much praise from our customers.

Payment:
We accept paypal or T/T, western union etc.

Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by  sea or other express, according to your quantity.

Certification:
CE, ISO9001, ROSH
