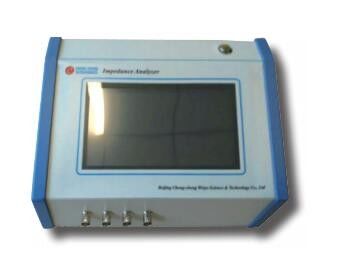

Ultrasonic Impedance Analyzer for Testing Ultrasonic transducer and Piezo ceramics
Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax

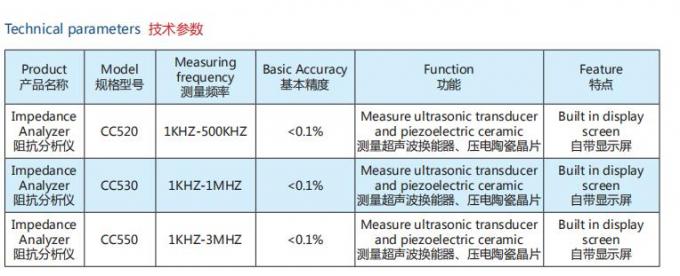

Type | C220 | C320 |
Frequency Range | 1KHZ-500Khz | 1Khz-1Mhz |
Measurement Index | All parameter, graphics | |
Measurement Accuracy | < 1% | < 0.5% |
Measurement Speed |
10 second/piece(equivalent to 600 scan dots ) |
5 second/piece(equivalent to 600 scan dots ) |
Frequency Accuracy | ±15ppm | ±5ppm |
Phase Resolution | 0.15 degree | 0.15 degree |
Enviroment temperature | 10-40 cº | 10-40 cº |
Impedance Range | 1Ω~1MΩ | 1Ω~1MΩ |
Frequency Step | 0.1Hz~any | 0.1Hz~any |
Application | Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical | Inspection production line of piezoelectric ceramic below 1MHzø |
