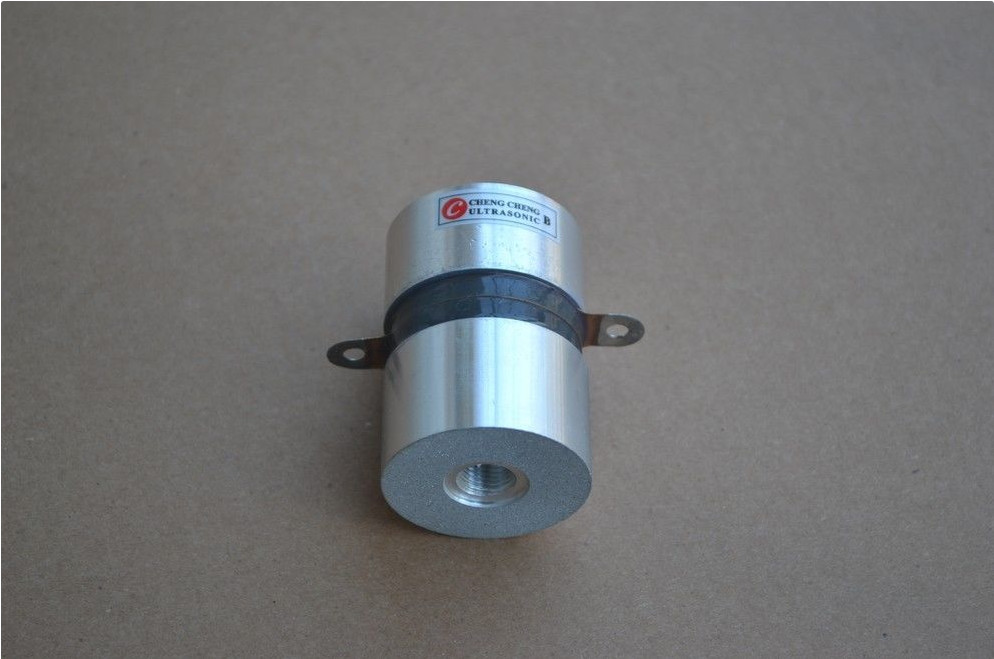

Cleaning Equipment Piezoelectric Ceramic Transducer Heat Resistance
Quick Detail:
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Description:
Features
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications:
widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Specifications:
Double frequency ultrasonic transducer
|
Type
|
Length (mm)
|
Weigth(g)
|
Frequency(khz)
|
Resonance Impedance(Ω) |
Capacity(Pf)±10﹪
|
Power(w)
|
|
CCH-4040D-38/80 KHZ P 4 |
61 |
330 |
38/80 |
<35 |
4800 |
50 |
|
CCH-3830D-50/135 KHZ P4 |
42 |
135 |
51/135 |
<35 |
3200 |
25 |
Three frequency ultrasoinic transducer
|
Type |
Length (mm)
|
Weigth(g)
|
Frequency(khz)
|
Resonance Impedance(Ω) |
Capacity (Pf)±10﹪
|
Power(w)
|
|
CCH-4535D- 40/77/100 KHZ P4 |
55 |
270 |
40/77/100 |
<30 |
4000 |
30 |
|
CCH-5840D- 28/83/130 KHZ P4 |
70 |
480 |
28/83/130 |
<30 |
5000 |
30 |
|
CCH-5840D- 25/45/80KHZ P4 |
78 |
540 |
25/45/80 |
<30 |
5000 |
40 |
|
CCH-4940D- 33/89/135KHZ P4 |
60 |
430 |
33/89/135 |
<30 |
5000 |
40 |
|
CCH-6945D- 28/41/123 KHZ P4 |
68 |
630 |
28/41/123
|
<30 |
5000 |
60
|
Five frequency ultrasoinic transducer
|
Type |
Length (mm)
|
Weigth(g)
|
Frequency(khz)
|
Resonance Impedance(Ω) |
Capacity (Pf)±10﹪
|
Power(w)
|
|
CCH-4040D- 41/76/87/100/143 KHZ P 4 |
54 |
280 |
41/76/87/100/173 |
<50 |
5200 |
40 |
|
CCH-4840D- 28/50/60/70/84 KHZ P4 |
81 |
465 |
41/76/87/100/173 |
<35 |
5000 |
30 |
Competitive Advantage:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
