High - Power 1500W 20K Ultrasonic Plastic Welding Sealing Ultrasonic Sensor

1 pc
High - Power 1500W 20K Ultrasonic Plastic Welding Sealing Ultrasonic Sensor
Features Gallery Product Description Request A Quote
Full-length:: 124
Joint Bolt(mm):: 1/2-20 UNF
Frequency(Khz): 20
Resonance Impedance:: 10
Capacity(pF):: 16000
Input Power(W):: 1500
High Light:

industrial ultrasonic transducer


piezoelectric ceramic transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCH-3840L-20D P8
Payment & Shipping Terms
Packaging Details: protection carton
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

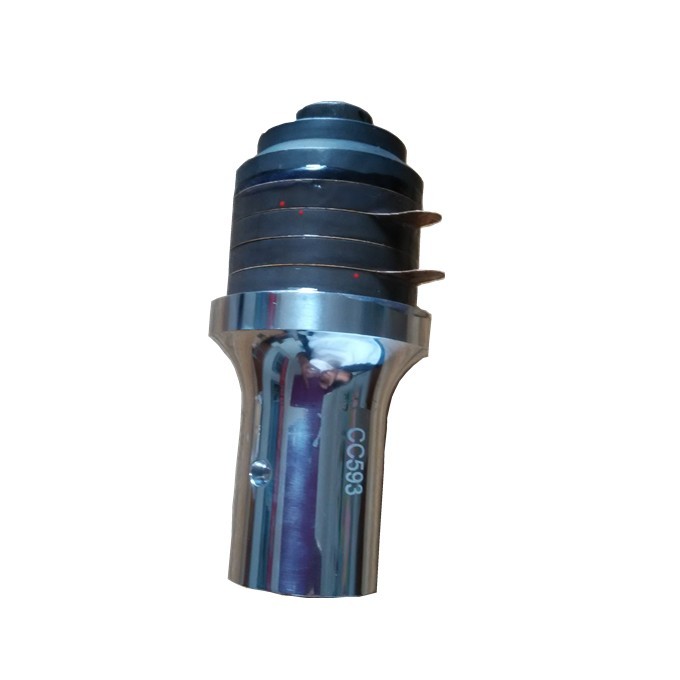

1500W 20K Ultrasonic Plastic Welding sealing Ultrasonic Sensor



High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.


To design and fabricate the transducers according to customers' requirements.



Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance Capacity(pf) Input Power(w)
CCH-3840L-20D P8 124 1/2-20 UNF 20 10 16000 1500
CCH-5050F-20Z P8 124 M18x1.5 20 12 10000 1500


Type: CCH-3840L-20D P8

Full-length(mm): 124

Joint Bolt(mm): 1/2-20 UNF

Frequency(KHz): 20

Resonance Impedance: 10


Input Power(w):1500




Beijing Cheng -Cheng Weiye Science and Technology Co., Ltd established in 1999. we are a professional manufacturer in ultrasonic transducers, ultrasonic generator and piezoelectric ceramics.


The ultrasonic transducers include ultrasonic cleaning transducer, welding, drilling and polishing transducer, Ultrasonic smashing cell transducer, IC Banding Transducer, Ultrasonic collar cleaning transducer, Ultrasonic vibration transducer, ultrasonic transducer for beauty, ultrasonic atomizing transducer, ultrasonic distance sensor, tubular transducer equipment, ultrasonic cleaning generator, ultrasonic cell disruptor etc.
