15K 2500W High Strength Ultrasonic Welding Transducer Environmental Protection

15K 2500W High Strength Ultrasonic Welding Transducer Environmental Protection
Features Gallery Product Description Request A Quote
High Light:

Multi Frequency Ultrasonic Transducer


Piezoelectric Ceramic Transducer

Basic Infomation
Place of Origin: China
Brand Name: CCWY
Certification: ISO9001 RoSH
Model Number: CCH-7070F-15Z P8
Payment & Shipping Terms
Packaging Details: Export Packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1-50000
Product Description


15K 2500W High Strength Ultrasonic Welding Transducer Environmental Protection

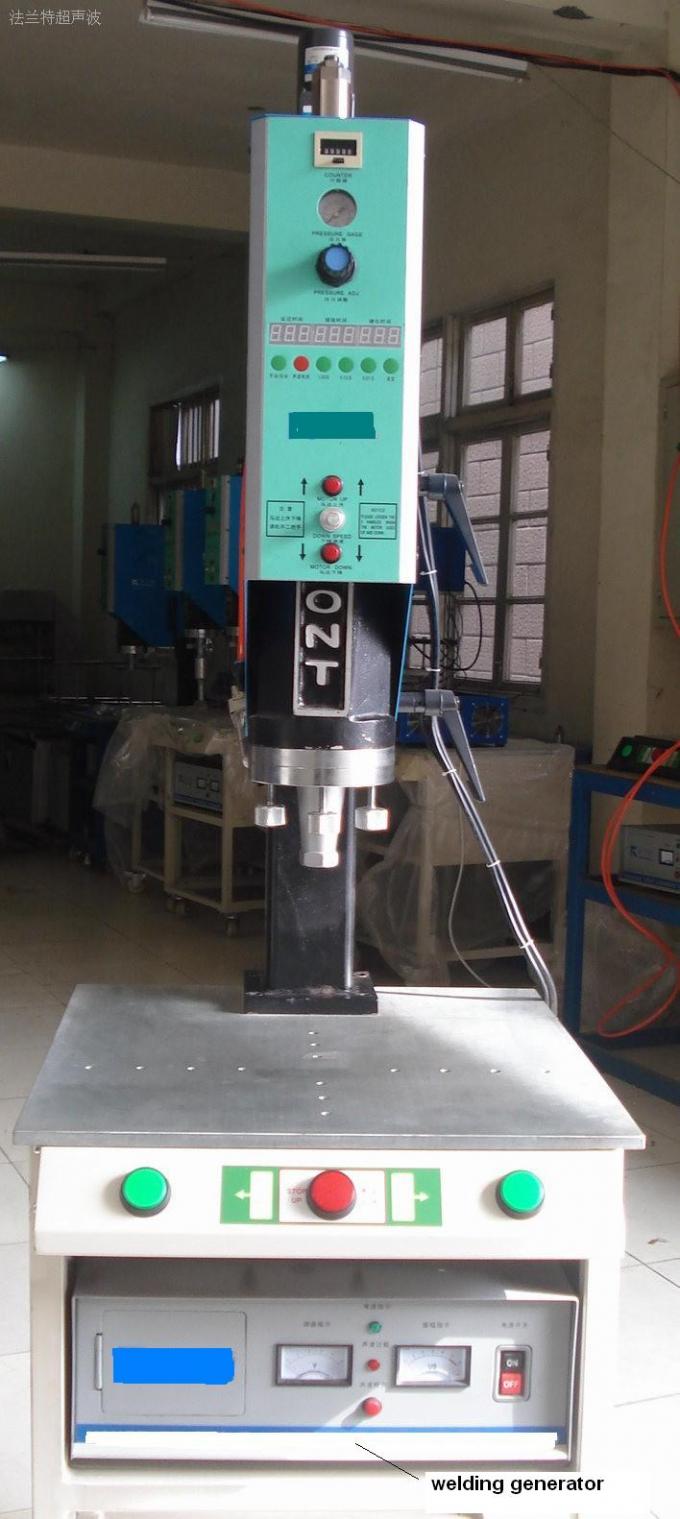

The advantages of ultrasonic plastic welding:

1 energy saving and environmental protection equipment

2 without smoke cooling ventilation device

3 is low cost, high efficiency, easy to realize automatic production of

4 high strength of welding, bonding

5 solder joint appearance, seamless welding, waterproof, airtight note: thermosetting plastics cannot be ultrasonic welding.


Ultrasonic transducer is a device for converting high frequency electric energy into mechanical energy. The electrical signal is converted to mechanical vibration by the piezoelectric effect of the material. Ultrasonic transducer is an energy converter, it is the function of the input power into mechanical power (that is, the ultrasonic) and then to pass out, and its own a small part of the power consumption. The most important consideration of the use of ultrasonic transducers is the matching of the input and output ends, and the second is the mechanical mounting and mating dimensions. The frequency of the transducer is relatively intuitive. The frequency refers to the frequency (function) generator, millivoltmeter, Oscilloscope by transmission line method measured frequency, or measured by network analyzer instrument similar frequency impedance. Commonly known as the small signal frequency. And it corresponds to the frequency of the machine, that is, the customer will be connected to the transducer through the cable to the chassis, the power of the actual operating frequency of no-load or load.




Type Length(mm) Joint Bolt(mm) Frequency(KHz)



Capacity(pf) Input Power(w)
CCH-3030D-28Z P8 92.1 M10x1 28 20 3000 200


1.High Efficiency: of high mechanical factor. High transfer efficiency is obtained
when working in resonance frequency.

2.Big amplitude: designed and chosen by computer, high rate in oscillation speed and
big amplitude in front operculum.

3.Big Power: under the function of the pre-stressed force screw rod, the piezoelectricity
ceramics can work freely in the highest level of power.

4.In good heat resistance: of small resonance impedance, less heat produced, can be
used in a wide range of temperature with long life and high reliability.



Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.

Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional

manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new

product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into

an easy task.

This product has been widely used in distillation, mix and mill for various chemical procedures and

has received much praise from our customers.
