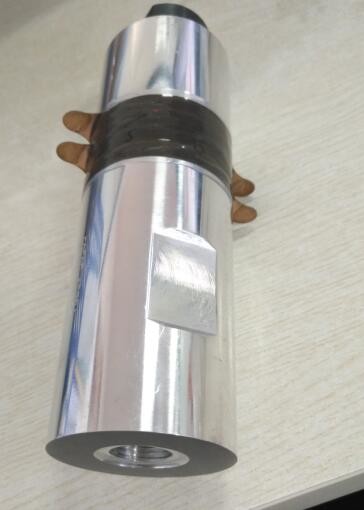

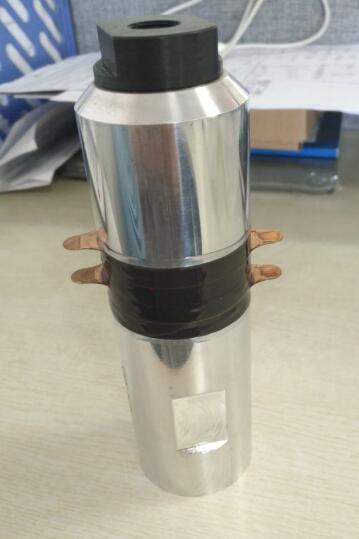

1500W 15K Ultrasonic Welding Transducer Plastic Project Welding ISO9001

We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.

• An ultrasonic generator to control and provide energy to the ultrasonic head.
• A mechanical unit composed with a Converter, a Booster and a Sonotrode / Horn, to perform the cutting sealing operations

Type: CCH-5050F-15z P4

Length(mm): 171

Joint Bolt(mm): m18x1.5

Frequency(KHZ):15

Resonance Impedance(Ω):12

Capacity (pF):12500

Input Power(w): 1500

1. The utlrasonic generator converts the power supply (100-250 Volts, 50-60 Hz) into a 20 to 30 kHz, 800-1000 Volts electrical signal. This signal is applied to piezo-electrical ceramics (included in the converter) that will convert this signal into mechanical oscillations
2. These oscillations will be amplified by the booster and converter, thus creating a hammer. The converter converts electricity into high frequency mechanical vibration. The active elements are usually piezoelectrics ceramics. The booster (optional) serves as an amplitude transformer. Amplitude magnification or reduction is achieved by certain design features or the geometrical shape of the booster.
3. The sonotrode, or horn, is the active part of the ultrasonic unit. It is in contact with the fabric and acts as a hammer against the counter-tool. This system will enable to melt the fibers within the fabric by mechanical action only (hammering), enabling to obtain a very clean and flexible melting without any burning or color change. The sonotrode and counter-tool design will be adapted to the operation to be performed
