60w 28khz Piezoelectric Ultrasonic Transducer For Cleaner Industry

1PCS
MOQ
60w 28khz Piezoelectric Ultrasonic Transducer For Cleaner Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Piezoelectric Ultrasonic Transducer
Power: 60W
Certification: CE, ROSH, ISO9001
Frequency: 28K
Material: Stainless Steel
Application: Ultrasonic Cleaner
High Light:

60w 28khz piezoelectric ultrasonic transducer

,

cleaner industry piezoelectric ultrasonic transducer

,

cleaner industry piezoelectric transducer ultrasound

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

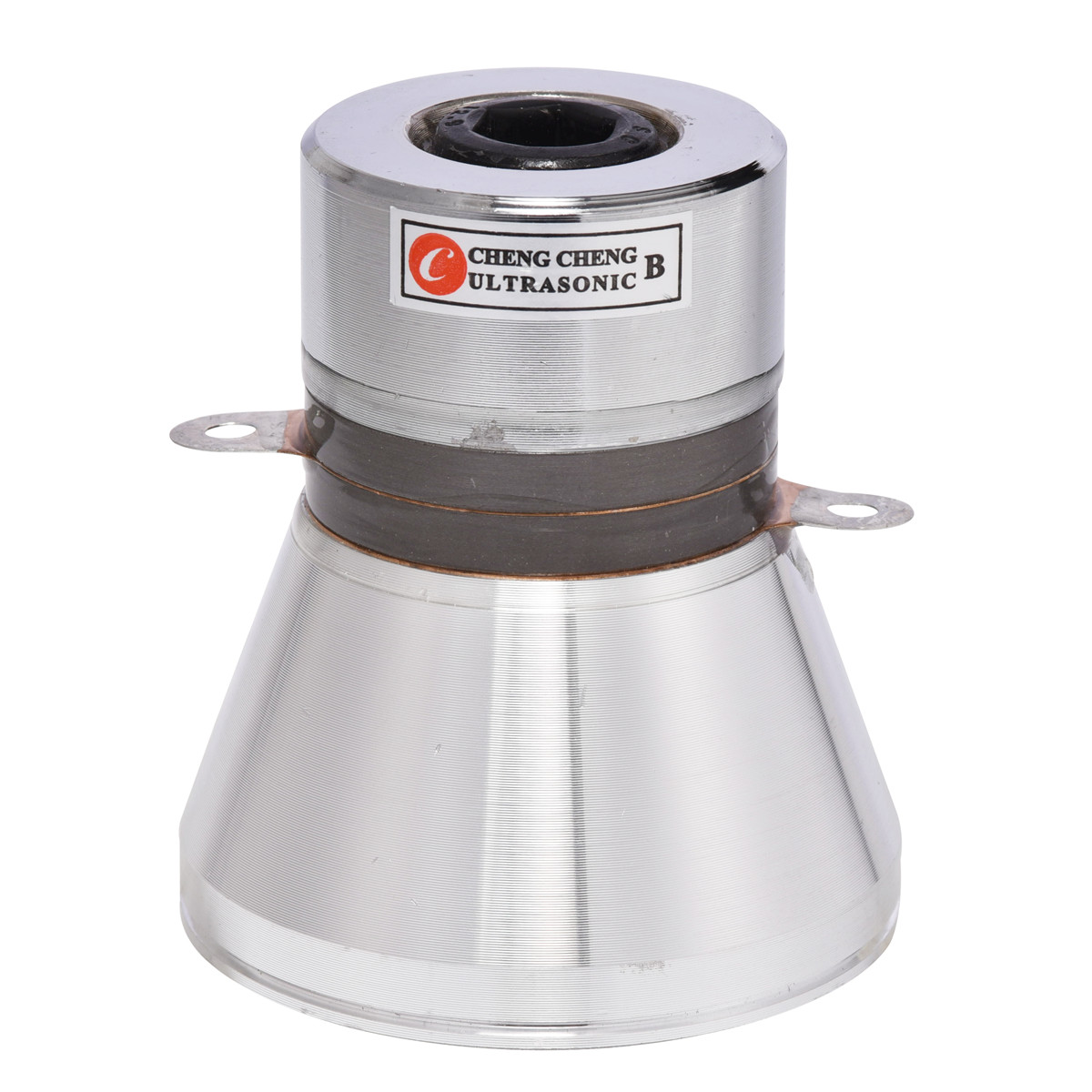

60W 28k Piezo Ultrasonic Transducer For Cleaner Industry




Description:

Ultrasonic cleaning transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).


The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.



Specifications:

Type Length(mm) Weight (g) Frequency(KHz)±4%

Resonance Impedance

(Ω)

Static Capacity

(pF)±10%

Input Power(W)
CCH-6645D-28LB PZT-4

66



614



28



≤20



6800



100



CCH-6645D-30L PZT-8

64



551



30



≤20



        5200

100



CCH-5938D-25LB PZT-4

77



530



25



≤20



4900



60



CCH-5938D-28LB PZT-8

68



470



28



≤20



3700



60



CCH-4535D-28ZB PZT-4

73



407



28



≤20



        3950

50



CCH-4838D-33LB PZT-8

62



420



33



≤20



4700



60





Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.

Payment:

We accept paypal or T/T, western union etc.


Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

Certification:

CE, ROSH, ISO9001

Company pictures:


60w 28khz Piezoelectric Ultrasonic Transducer For Cleaner Industry 0
