25k 100w Cleaner Sensor Piezo Transducer 66mm Height
Features Gallery Product Description Request A Quote
Features
Specifications
Products: Ultrasonic Cleaning Transducer
Frequency: 25K
Power: 100W
Material: Aluminum, Stainless Steel
Usage: Cleaner
Height: 66mm
High Light:

25k 100w piezo transducer

,

cleaner sensor piezo transducer

,

66mm height piezoceramic transducer

Basic Infomation
Place of Origin: China
Brand Name: BJCCWY
Certification: ISO9001, CE, RoHs
Model Number: 100w 28k
Payment & Shipping Terms
Packaging Details: Carton or wooden case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000000
Product Description



25k 100w Cleaner Piezo Ultrasonic Transducer Sensor



             Features

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt.Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.



           Naming methods as following





Type



Length(mm)



Weight (g)



Frequency(KHz)±4%



Resonance Impedance

(Ω)



Static Capacity

(pF)±10%



Input Power(W)

CCH-7145D-20LA PZT-8



94



900



20



≤20





5200



100



CCH-6645D-25LB PZT-4

77



717



25



≤20



6800



100



CCH-6650D-28LB PZT-4

69



746



28



≤20



7900

120



CCH-6645D-28LB PZT-8

66



625



28



≤20



5200



100



CCH-6645D-28LB PZT-4

66



614



28



≤20



6800



100



CCH-6645D-30L PZT-8

64



551



30



≤20



5200

100

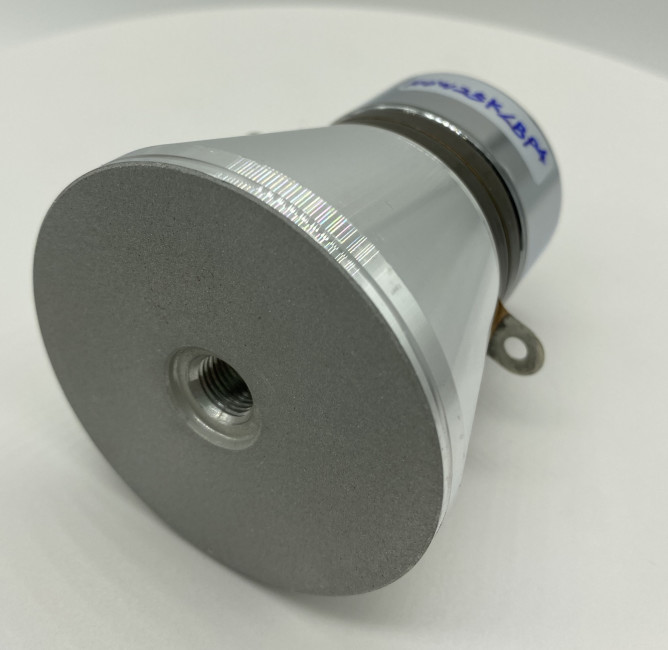

25k 100w Cleaner Sensor Piezo Transducer 66mm Height 0
