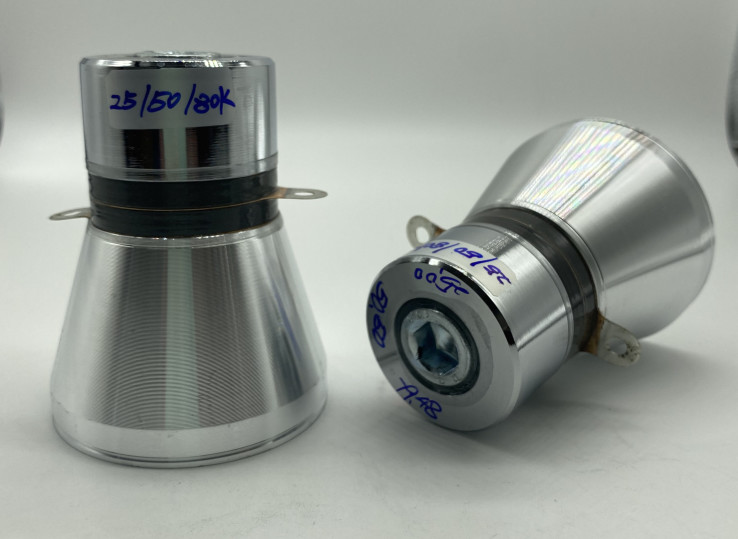

Three Frequency Ultrasonic Cleaner Piezoelectric Transducer
Features
◊ High efficiency
◊High amplitude
◊ Good heat resistance
◊ Good construction
Naming methods as following
Type |
Length(mm) |
Weight (g) |
Frequency(KHz)±4% |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power(W) |
CCH-7145D-20LA PZT-8
|
94
|
900
|
20
|
≤20
|
5200
|
100
|
CCH-6645D-25LB PZT-4 |
77
|
717
|
25
|
≤20
|
6800
|
100
|
CCH-6650D-28LB PZT-4 |
69
|
746
|
28
|
≤20
|
7900 |
120
|
CCH-6645D-28LB PZT-8 |
66
|
625
|
28
|
≤20
|
5200
|
100
|
CCH-6645D-28LB PZT-4 |
66
|
614
|
28
|
≤20
|
6800
|
100
|
CCH-6645D-30L PZT-8 |
64
|
551
|
30
|
≤20
|
5200 |
100
|
CCH-5938D-25LB PZT-4 |
77
|
530
|
25
|
≤20
|
4900
|
60
|
CCH-5938D-28LB PZT-8 |
68
|
470
|
28
|
≤20
|
3700
|
60
|
CCH-4535D-28ZB PZT-4 |
73
|
407
|
28
|
≤20
|
3950 |
50
|
CCH-4838D-33LB PZT-8 |
62
|
420
|
33
|
≤20
|
4700
|
60
|
CCH-4938D-40LA PZT-8 |
55
|
307
|
40
|
≤20
|
3700
|
60
|
CCH-4538D-40ZB PZT-4 |
57
|
301
|
40
|
≤20
|
4700
|
60
|
CCH-4535D-40LB PZT-4 |
48
|
254
|
40
|
≤20
|
4300 |
50
|
CCH-4535D-40ZB PZT-4 |
53
|
234
|
40
|
≤20
|
4200 |
50
|
CCH-3830D-54LA PZT-4 |
36
|
132
|
54
|
≤20
|
3500 |
35
|
CCH-4938D-70ZB PZT-8 |
80
|
468
|
70 |
≤20
|
5000
|
60
|
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ROSH, ISO9001
