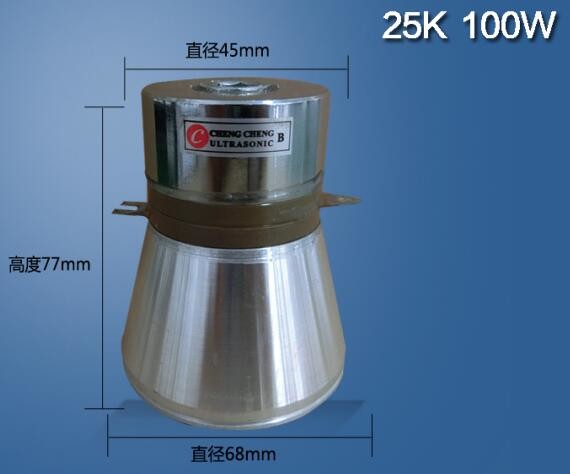

25 KHZ Frequency Cleaning ultrasonic piezo transducer ultrasonic transducer
Quick Detail
25khz 100w ultrasonic cleaning transducer:
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Description
25khz100w ultrasonic cleaning transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications
widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Naming methods as following:
Specifications
25khz100w ultrasonic cleaning transducer:
|
Type |
Length
(mm) |
Weigh
(g) |
Frequency
(KHz) |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power (W) |
|
CCH-6845D-25LB PZT-4 |
77 |
710 |
25 |
10-20 |
6600 |
100 |
Competitive Advantage
25khz100w ultrasonic cleaning transducer:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
