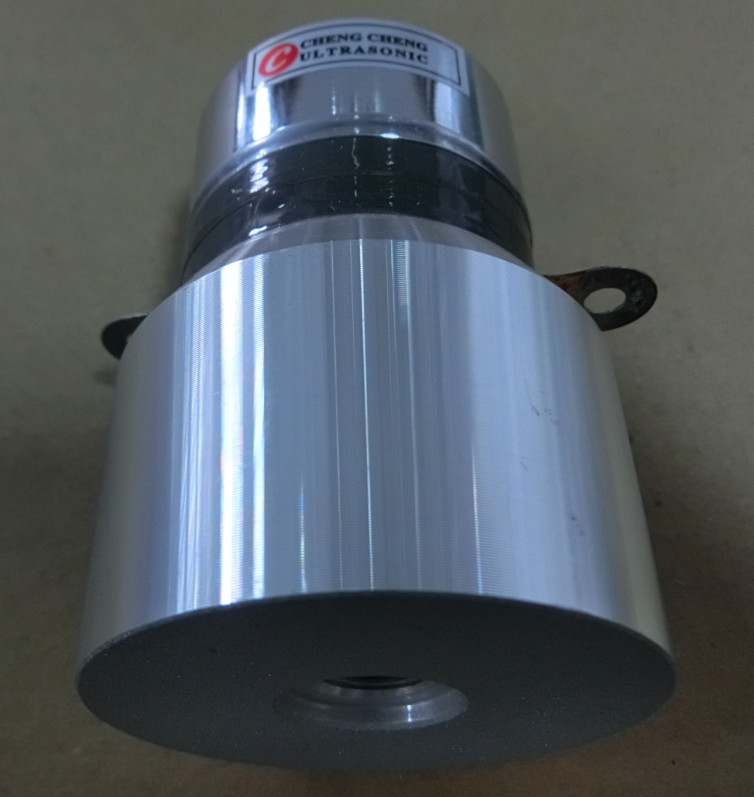

70khz 60w Cleaning Transducer Single Frequency Sensor
Features
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Naming methods as following
| CCH-6645D-28LB PZT-4 |
66
|
614
|
28
|
≤20
|
6800
|
100
|
| CCH-6645D-30L PZT-8 |
64
|
551
|
30
|
≤20
|
5200 |
100
|
| CCH-5938D-25LB PZT-4 |
77
|
530
|
25
|
≤20
|
4900
|
60
|
| CCH-5938D-28LB PZT-8 |
68
|
470
|
28
|
≤20
|
3700
|
60
|
| CCH-4535D-28ZB PZT-4 |
73
|
407
|
28
|
≤20
|
3950 |
50
|
| CCH-4838D-33LB PZT-8 |
62
|
420
|
33
|
≤20
|
4700
|
60
|
| CCH-4938D-40LA PZT-8 |
55
|
307
|
40
|
≤20
|
3700
|
60
|
| CCH-4538D-40ZB PZT-4 |
57
|
301
|
40
|
≤20
|
4700
|
60
|
| CCH-4535D-40LB PZT-4 |
48
|
254
|
40
|
≤20
|
4300 |
50
|
| CCH-4535D-40ZB PZT-4 |
53
|
234
|
40
|
≤20
|
4200 |
50
|
| CCH-3830D-54LA PZT-4 |
36
|
132
|
54
|
≤20
|
3500 |
35
|
| CCH-4938D-70ZB PZT-8 |
80
|
468
|
70 |
≤20
|
5000
|
60
|
| CCH-4038D-82ZB PZT-4 |
62
|
316
|
82
|
≤20
|
4900
|
60
|
| CCH-3938D-100ZB PZT-4 | 53 | 289 | 100 |
≤20
|
4600 | 40 |
| CCH-3938D-124ZB PZT-4 |
59
|
365
|
124
|
≤20
|
5200
|
60
|
|
Type |
Length(mm) |
Weight (g) |
Frequency(KHz)±4% |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power(W) |
|
CCH-5839D-25/50LB PZT-4
|
80 | 540 | 25/50 | <35 | 4900 | 40 |
|
CCH-4039D-80/38ZB PZT-4 |
61 | 330 | 38/80 | <35 | 4800 | 40 |
|
CCH-4039D-100/40ZB PZT-4 |
54 | 280 | 40/100 | <35 | 3200 | 40 |
| CCH-5839D-25/50/80 PZT-4 | 80 | 540 | 25/50/80 | <40 | 5000 | 35 |
|
CCH-4039D-100/73/40 PZT-4 |
56 | 260 | 40/73/120 | <40 | 5100 | 35 |
|
CCH-4039D-120/80/40 PZT-4 |
56 | 260 | 40/80/120 | <40 | 5100 | 35 |
|
CCH-5839D-25/50/80/120 PZT-4 |
80 | 540 | 25/50/80/120 | <45 | 5200 |
30 |
|
CCH-4039D-120/170/80/40 PZT-4 |
56 | 260 | 40/80/120/170 | <45 | 5400 | 30 |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ROSH, ISO9001
