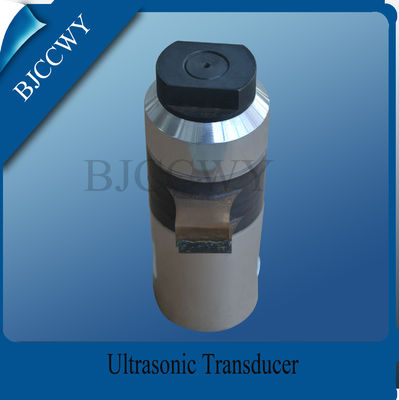

Welding Machine High Power Ultrasonic Transducer , Multi frequency ultrasonic transducer
20KHZ 2000W Ultrasonic Transducer For Welding Machine and design all different ultrasonic transducer according to needs
Quick Detail
20KHZ 2000W Ultrasonic Transducer:
High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.
Welding Machine High Power Ultrasonic Transducer , Multi frequency ultrasonic transducer
Description of 20KHZ2000W Ultrasonic Transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications of 20KHZ2000W Ultrasonic Transducer:
widely used in ultrasonic welding machine.ultrasonic polishing machine and ultrasonic drilling machine.
Specifications of 20KHZ2000W Ultrasonic Transducer:
Type |
Full-length(mm) |
Joint Bolt(mm) |
Frequency(KHz)
|
Resonance Impedance(Ω)
|
Capacity(pF)
|
Input Power (W) |
CCH-3850L-20D P8
|
128
|
1/2-20 UNF
|
20
|
10
|
20000
|
2000
|
Competitive Advantage of 20KHZ2000W Ultrasonic Transducer:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
