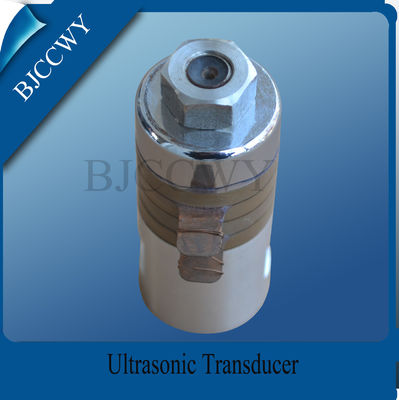

Heat Resistance High Power Ultrasonic Transducers For Cleaning
Quick Detail 15KHZ1500W Ultrasonic Transducer:
High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.
Description of 15KHZ1500W Ultrasonic Transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications of 15KHZ1500W Ultrasonic Transducer:
widely used in ultrasonic welding machine.ultrasonic polishing machine and ultrasonic drilling machine.
Specifications of 15KHZ1500W Ultrasonic Transducer:
|
Type |
Full-length(mm) |
Joint Bolt(mm) |
Frequency(KHz)
|
Resonance Impedance(Ω)
|
Capacity(pF)
|
Input Power (W) |
|
CCH-5050F-15Z P4
|
171
|
M18×1.5
|
15
|
12
|
12500
|
1500
|
Feature
1. The piezoelectric ceramic chip adopts high quality parts, and can give a strong and
stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic
conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric
ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using
temperature range is wide.
Competitive Advantage of 15KHZ1500W Ultrasonic Transducer:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
