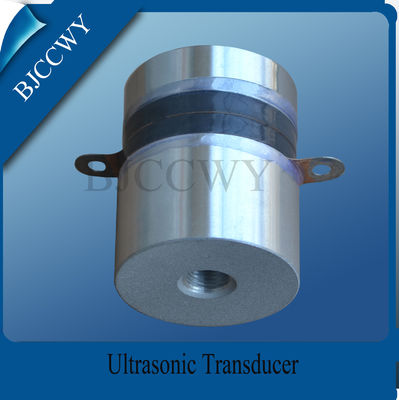

80khz Piezoelectric Ultrasound Transducer / High Power Ultrasonic Transducer
Quick Detail of 80khz60w ultrasonic cleaning transducer:
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Description of 80khz60w ultrasonic cleaning transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications of 80khz60w ultrasonic cleaning transducer:
widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.
Naming methods as following:
Specifications of 80khz60w ultrasonic cleaning transducer:
|
Type |
Length
(mm) |
Weigh
(g) |
Frequency
(KHz) |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power (W) |
|
CCH-4038D-80ZB PZT-4 |
53 |
290 |
80 |
15-30 |
5400 |
60 |
Competitive Advantage of 80khz60w ultrasonic cleaning transducer:
1. Small machinery loss,
2. High efficiency electricity
3. Sound transfer,
4. Big swing and less heat.
5. Good construction
6. Easy to installation
7. High reliablity
