Industrial Screen 33khz Ultrasonic Vibration Sensor Transducer And Generator

1PCS
MOQ
$700
Price
Industrial Screen 33khz Ultrasonic Vibration Sensor Transducer And Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Screen Vibration Transducer And Generator
Frequency: 33K
Input Power: 100W
Screen Size: About 1.2m
Impedance: 20-40
Weight: 15kgs
High Light:

33khz ultrasonic vibration sensor

,

industrial ultrasonic vibration sensor

,

33khz ultrasonic vibration transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

Industrial Screen Ultrasonic Vibration Transducer and generator





Feature



Improve the low density of the powder in the gravity settling pancake

(powder contact with the advantage of network),

the slippage effect

improve the high density of metal in the front-end ports retention or wedging,

improving the adhesion effect of electrostatic powder,

thus improve the screening efficiency and quality of screening.







Ultrasonic vibration transducer is one kind of piezoelectric transducers.

It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip

and an insulating tube. The ultrasonic vibration transducer is widely

used in vibrating screen equipment factory (so now the vibrating equipment can

have both the mechanical and ultrasonic vibration). It separates materials into finer detail,

more uniform and more efficient, which is especially suitable for fine-screening materials.

  Ultrasonic vibrating screen is the ultrasonic generator and vibrating screen together

new products, the principle is to 220 v, 50 hz or 110 v, 60 hz power

can be converted into high frequency electric energy of 18 to 40 KHZ, reoccupy perfectly

on the sieve box ultrasonic vibrator head will be high frequency electric energy into mechanical energy,

make the invisible to the naked eye of supersonic vibration sieve surface,

makes the ultra micro powder accept huge ultrasonic acceleration,

the material on the surface of the screen always stay suspended state,

and thus dampen adhesion, friction, pancake, wedging, such as screen blocking factors,

thus achieve the purpose of efficient screening and network, makes the ultra micro powder screening

for easy. Especially suitable for high quality, fine powder of users.









Application

1. To achieve high accuracy, high mesh screening at the same time,

    the control of a narrow particle size range.

2. Can be used single layer and multilayer.

3. Screen self-cleaning function: greater than 500 mesh sieve,

    no mesh plug, no attenuation screening efficiency.

4. Solve the strong adsorption, easy to reunite, electrostatic, high precision,

    high density, high light specific gravity and other screening problem.

5. Screening accuracy can improve the 1-70%, yield can increase 0.5 to 10 times.

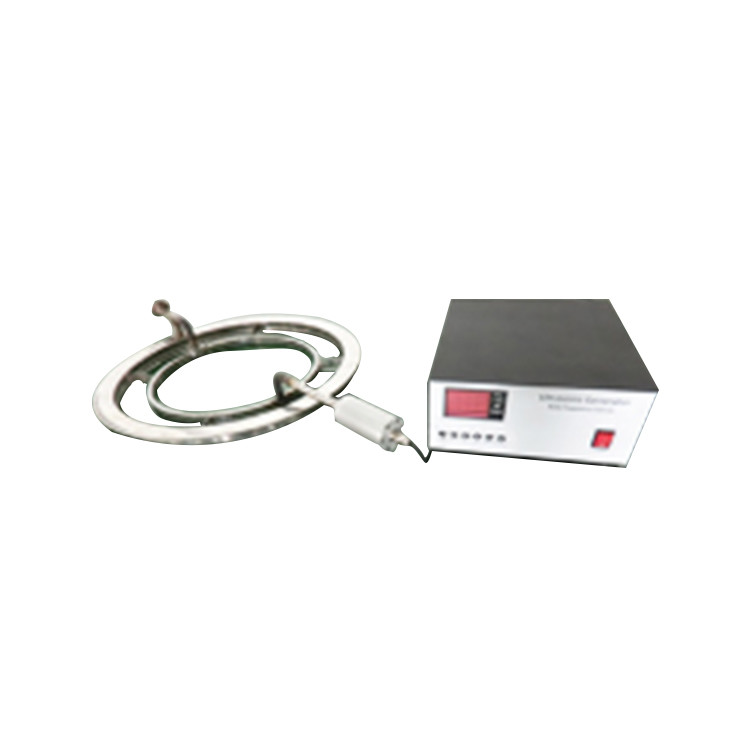

Industrial Screen 33khz Ultrasonic Vibration Sensor Transducer And Generator 0



Company introduction:



Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.



Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.



Payment:



We accept paypal or T/T, western union etc.





Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:



CE, ISO9001, ROSH
