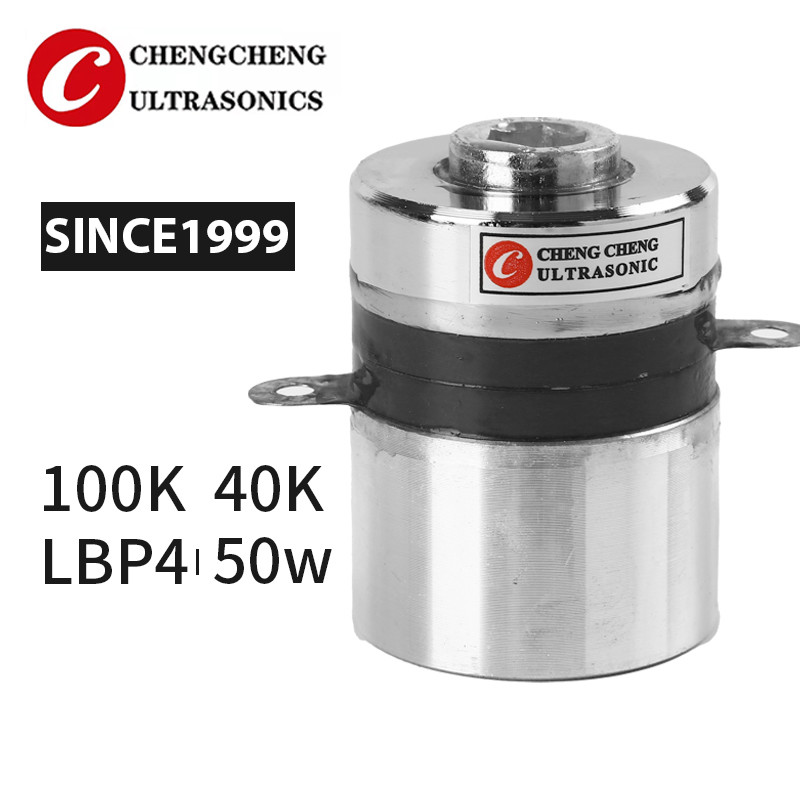

54mm Ultrasonic Cleaning Transducer 50w 40k And 100k Double Frequency
1pc
MOQ
5.8-7.5USD
Price
54mm Ultrasonic Cleaning Transducer 50w 40k And 100k Double Frequency
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: BJCCWY
Certification: ISO9001, CE, RoHs
Model Number: 50w 40k/100K
High Light:

Ultrasonic Cleaning Transducer 50w 40k

,

Ultrasonic Cleaning Transducer 50w 100k

,

54mm Ultrasonic Cleaning Transducer

Payment & Shipping Terms
Packaging Details: Carton or wooden case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000000
Specifications
Products: Ultrasonic Cleaning Transducer
Frequency: 40/100K
Power: 50W
Material: Aluminum, Stainless Steel
Usage: Cleaner
Height: 54mm
Product Description



50W 40k and 100k double Frequency Ultrasonic Cleaning Transducer



             Features

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt.               Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.



           Naming methods as following







Type



Length(mm)



Weight (g)



Frequency(KHz)±4%



Resonance Impedance

(Ω)



Static Capacity

(pF)±10%



Input Power(W)

CCH-5839D-25/50LB

PZT-4



80 540 25/50 <35 4900 40

CCH-4039D-80/38ZB

PZT-4

61 330 38/80 <35 4800 40

CCH-4039D-100/40ZB

PZT-4

54 280 40/100 <35 3200 40
CCH-5839D-25/50/80 PZT-4 80 540 25/50/80 <40 5000 35

CCH-4039D-100/73/40

PZT-4

56 260 40/73/120 <40 5100 35

CCH-4039D-120/80/40

PZT-4

56 260 40/80/120 <40 5100 35

CCH-5839D-25/50/80/120

PZT-4

80 540 25/50/80/120 <45 5200

30

CCH-4039D-120/170/80/40

PZT-4

56 260 40/80/120/170 <45 5400 30





Company introduction:



Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.



We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.



Payment:



We accept paypal or T/T, western union etc.





Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:



CE, ROSH, ISO9001
