100W 25K Piezo Ceramics Ultrasonic Cleaning Transducer / Sensor

1PCS
MOQ
100W 25K Piezo Ceramics Ultrasonic Cleaning Transducer / Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CCH-6845D-25LB Pzt-4
Length(mm): 77
Weight(g): 710
Frequency(KHZ): 25
Resonance Impedance: 10-20 Ω
Input Power(w): 100
High Light:

underwater ultrasonic transducer

,

40khz ultrasonic transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

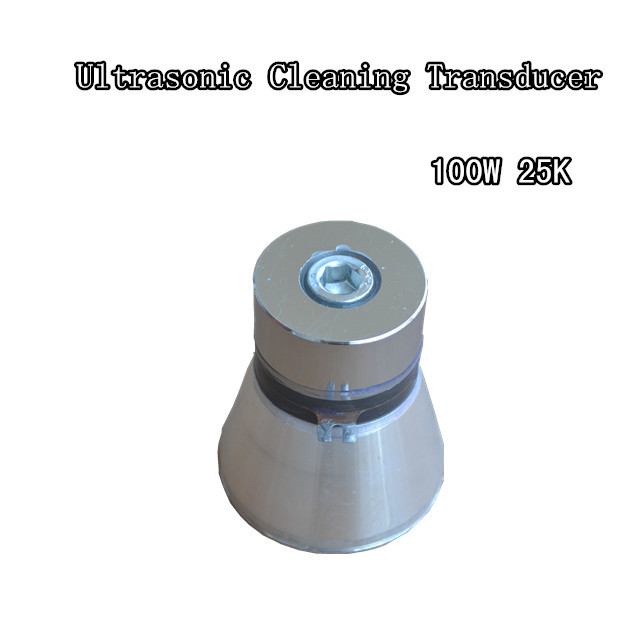

100W 25 K Ultrasonic Piezo Ceramics Cleaning transducer /sensor



Quick Detail





Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.





Description





◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:



100W 25K Piezo Ceramics Ultrasonic Cleaning Transducer / Sensor 0



100W 25K Piezo Ceramics Ultrasonic Cleaning Transducer / Sensor 1



Specifications







Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-25LB

PZT-4

77

710

25

10-20

6600

100



Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.

Payment:

We accept paypal or T/T, western union etc.

Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

Certification: ø

CE, ISO9001, ROSH
