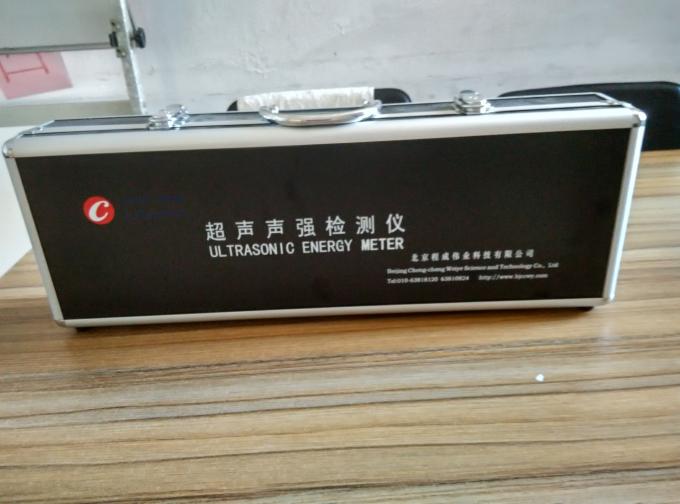

Ultrasonic Energy Meter for Testing Ultrasound Best Package for Shipping Protection
Measure the ultrasonic power,frequency of ultrasonic system.
Type:DBS-200S (Frequency display, data upload interface, computer data analysis software)
Measurement Range:0 - 255 w/in2
Measurment Frquency:10 kHz – 200 kHz
Date display:Color screen display, time and energy curve, the maximum, minimum, average, record file number.
Date Storage:Time, instantaneous energy, continuous recording 24 hours, 180 k data (0.5 seconds per point)
Power supply:3.7 V li-ion rechargeable battery
Material of sensor: Stainless Steel
Temperature of Liquid: 0℃- 150℃ ；
Diamater of sensor: 10 mm；
Length of sensor: 1.0m；0.5 +0.5m cable
|
Type |
DBS-200S |
|
Measuring Range |
0 -255 w/in2 |
|
Measuring Frequency |
10 kHz – 200 kHz |
|
Data Display |
Color display, time and energy curve, maximum value, minimum value, average value, record file number, ultrasonic frequency |
|
Data storage |
Time, frequency, instantaneous energy, continuous recording 48 hours, 360K point data(0.5”/point) |
|
Electric Source |
3.7V Lithium rechargeable battery |
|
Detector Material |
Stainless steel sealing pipe |
|
Fluid Temperature |
0℃-150℃ |
|
Detector Diameter |
25mm |
|
Detector Length |
1.0 m；0.5mStainless steel Detector+0.5m cable |
|
Frequency showing |
Yes |
|
Data upload |
Yes |
|
Computer analysis software
|
Yes(additional cost) |
