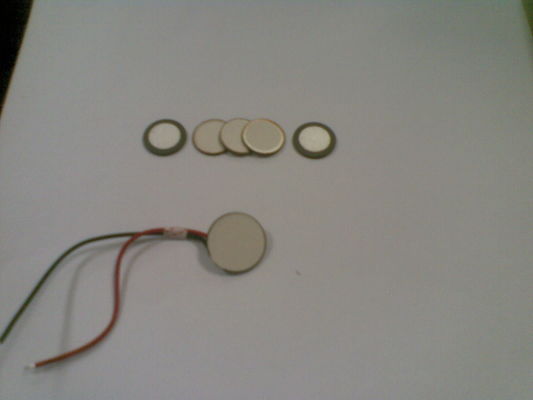

25/58 Piezoelectric Disc High Reliablity Piezo Ceramic Disc

1PCS
MOQ
$5--$10
Price
25/58 Piezoelectric Disc High Reliablity Piezo Ceramic Disc
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

ultrasonic atomizing piezoelectric transducer

,

piezoelectric ceramic disc transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

25/58 Piezoelectric Disc High Reliablity Piezo Ceramic Disc



Quick Detail of 25/58 disc Piezoelectric Ceramic:

all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.

the materials have the pzt4,pzt5 ,pzt8 or other required material.



Description of 25/58 Piezoelectric Ceramic:



◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.



Applications of 25/58 Piezoelectric Ceramic:



widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on





Specifications of 25/58 Ring Piezoelectric Ceramic:



dimension (mm)

maximal displacement
(um)

load weight
(kg)

drive voltage
 (VDC)

(um)

Φ25×58

≥40

50

0-300

≤0.05





Competitive Advantage of disc Piezoelectric Ceramic:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
