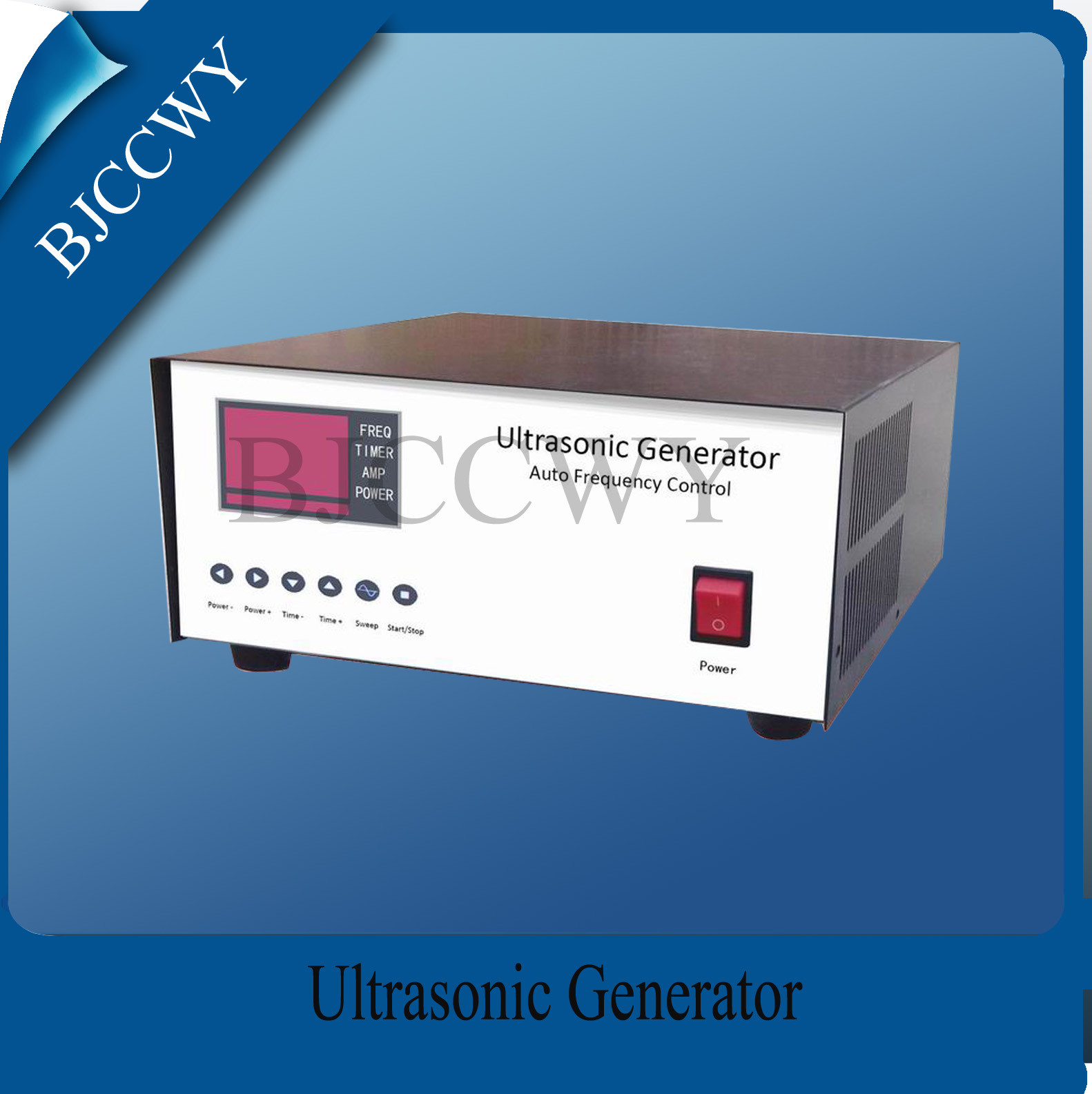

50khz-200khz 1200w high frequency ultrasonic generator for cleaning equipment
Quick Detail
50khz-200khz 1200w high frequency ultrasonic generator:
In harmony with the global ultrasonic industry and with over ten years of experience in researching and using ultrasonic products, we depend on a special power source for ultrasonic cleaners, which adopt advanced microcomputer control techniques and a bran-new ideas in circuit design and is widely applied in the ultrasonic cleaning industry.
Type |
X4-A-I |
X4-A -II |
X4-A-III |
X4-A-IV |
X4-M-V |
Driven power |
600W-900W |
900W-1500W |
1500W-2100W |
2100W-2700W |
3000W |
Power Control (Adjustable) |
0-100% |
0-100% |
0-100% |
0-100% |
0-100% |
Working Frequency |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
Working voltage |
AC220V 10% 50HZ |
AC220V 10% 50HZ |
AC220V 10% 50HZ |
AC220V 10% 50HZ |
AC220V 10% 50HZ |
Max.numbers of transducers |
12-18pcs 60W |
12-30pcs 60W |
12-42pcs 60W |
12-54pcs 60W |
12-60pcs 60W |
Rated Current per transducer |
0.1-0.17A |
0.1-0.17A |
0.1-0.17A |
0.1-0.14A |
0.1-0.14A |
Output Current range |
1-3A |
1-4.5A |
1-6A |
1-7A |
1-7.5A |
Time Control Range |
0-59’59” |
0-59’59” |
0-59’59” |
0-59’59” |
0-59’59” |
Environment temperature |
0-40℃ |
0-40℃ |
0-40℃ |
0-40℃ |
0-40℃ |
Relative Humidity |
40%-90% |
40%-90% |
40%-90% |
40%-90% |
40%-90% |
Net weight |
10KG |
11KG |
12KG |
12KG |
12KG |
Dimension (mm) |
390×350×130 |
390×350×130 |
390×350×130 |
390×350×130 |
390×350×130 |
Warning: a generator should not be operated for long time at the current higher than the rated current.
Applications
widely used in ultrasonic cleaning equipment
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional
manufacturer in ultrasonic transducers,ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into
a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning
into an easy task. This product has been widely used in distillation, mix and mill for various chemical
procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.
Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
