40 / 80khz Ultrasonic Frequency Generator With High Power Switching Transducer

1PCS
MOQ
$300-$600
Price
40 / 80khz Ultrasonic Frequency Generator With High Power Switching Transducer
Features Gallery Product Description Request A Quote
Features
Specifications
Environment Temperature:: 0-40C
Relative Humidity:: 40%-90%
Working Frequency:: 40KHz, 80KHz
Time Control:: 0-59'59"
Range Of Power Control:: 0-100% 16 Grades
Internal Over Temperature Protection:: 65 C
High Light:

ultrasonic signal generator

,

ultrasonic pulse generator

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

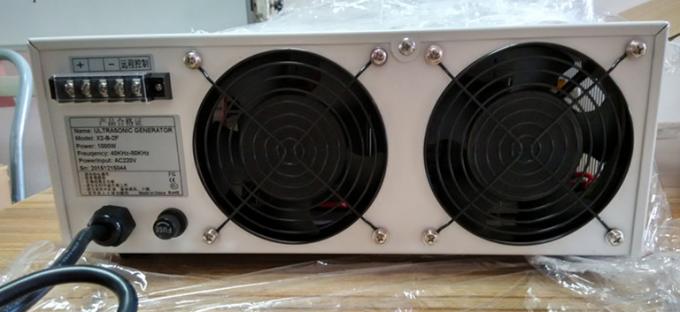

40 / 80khz Double Frequency Ultrasound Generator With High Power Switching Transducer

ultrasonic generators adopt international leading high-frequency laser, which more stable and more intensive. Compared with the formers, it can clean more complete and faster. Coupled with the unique anti-corrosion technology, guarantee the using environment unlimited. Besides, adopt the imported international leading power tube drive, greatly enhance the stability of the product, its transferring rate reach above 95%.



1, Integrated digital display following functions: current, frequency, cleaning time and PLC remote control, and current overload alarm.

2,  Introduced international leading high-frequency laser line and adopted imported high-frequency power drive, with high pressurization and current, stable output and low breakdown advantages etc. greatly enhance its quality.

3,  Soft-start mode, with vibration head short protection, leakage protection and overload protection.

4,  Adopting power adjusting LED digital display, LED will display more intuitive and more accurate.

5,  Adopting external touching button control, increase the machine’s manipulate, not only independently monitoring ultrasonic generator’s various operating parameters, but also can monitoring its various operating parameters in scan display mode. Such as: operating current, operating frequency, timing, PLC control, current overload, etc.

6,  Additional EMC component effectively reduce the electromagnetic interference, while increased the machine’s stability and reliability of multiple ultrasonic generator.






Type

X4-A-I

X4-A -II

X4-A-III

X4-A-IV

X4-M-V

Driven power

600W-900W

900W-1500W

1500W-2100W

2100W-2700W

3000W

Power Control
(Adjustable)

0-100%

0-100%

0-100%

0-100%

0-100%

Working
Frequency

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

Working voltage

AC220V 10%
50HZ

AC220V 10%
50HZ

AC220V 10%
 50HZ

AC220V 10% 50HZ

AC220V 10% 50HZ

Max.numbers of
transducers

12-18pcs 60W

12-30pcs 60W

12-42pcs 60W

12-54pcs 60W

12-60pcs 60W

Rated Current
per transducer

0.1-0.17A

0.1-0.17A

0.1-0.17A

0.1-0.14A

0.1-0.14A

Output  Current
range

1-3A

1-4.5A

1-6A

1-7A

1-7.5A

Time Control
Range

0-59’59”

0-59’59”

0-59’59”

0-59’59”

0-59’59”

Environment
temperature

0-40℃

0-40℃

0-40℃

0-40℃

0-40℃

Relative Humidity

40%-90%

40%-90%

40%-90%

40%-90%

40%-90%

Net  weight

10KG

11KG

12KG

12KG

12KG

Dimension (mm)

390×350×130

390×350×130

390×350×130

390×350×130

390×350×130



Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.


Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional
manufacturer in ultrasonic transducers,ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a
new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning
into an easy task. This product has been widely used in distillation, mix and mill for various chemical
procedures and has received much praise from our customers.


Payment:
We accept paypal or T/T, western union etc.


Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.
Or as your requested by sea or other express, according to your quantity.


Certification:
CE, ISO9001, ROSH
