Vibration Ultrasonic Tubular Transducer For Biochemistry / Pharmaceutical Industry

Vibration Ultrasonic Tubular Transducer For Biochemistry / Pharmaceutical Industry
Features Gallery Product Description Request A Quote
Name: Ultrasonic Tubular Transducer
Application: Environmental Industry
High Light:

submersible ultrasonic transducer


ultrasonic cleaner transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

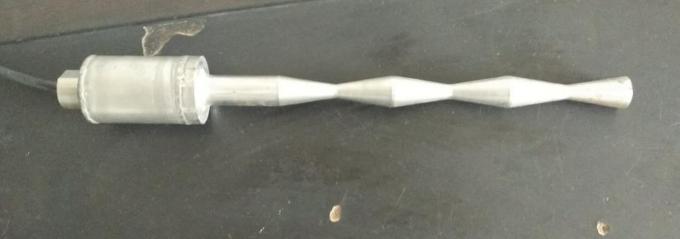

Tubular Vibration Reactor used in Biochemistry or Pharmaceutical Industry





Chemical industry: Dispersion of molybdenum dioxide into engine lubricating oil, dispersion of silica, dispersion of metallic sodium, particulation of sludge in oil,
Fuel upgrading, oil tanker wastewater emulsification, mineral oil emulsification, packaging waterproof coating agent emulsion, titanium dioxide dispersed in water,
Graphite microparticulation, dispersion of photosensitive material, dispersion of fluorescent material, dispersion of dye into molten paraffin.
Pharmaceutical industry: dispersion of medicinal substances for injection, extraction of Chinese herbal medicines, preparation of suspensions, preparation of service seedlings, etc.
Bio-industry: extraction of alkaloids, extraction of fats and oils, fragmentation of biological cells, etc.
Food industry: Dispersion of milk powder, emulsification of butter, dispersion of raw materials in the manufacture of sauces, alcoholization of wine, etc.
Cosmetic industry: emulsification of wax and paraffin, dispersion of fine particles such as detergent and lotion, etc.
Environmental industry: sewage treatment, exhaust gas dust removal, anti-scaling, electroplating, cleaning and so on.


1, cavitation occurs around the seismic rod, the ultrasonic energy is very uniform distribution, so as to achieve the desired effect;

2, ultrasonic stick power output from the level, the tank capacity and temperature changes and other load changes, the power output is stable and uniform;

3, due to the structural characteristics of the ultrasonic stick, its scope of application to teach the traditional ultrasonic vibration plate is more extensive, the most suitable vacuum / pressure cleaning, but also suitable for a variety of chemical processes;

4, more than 1.5 times the traditional ultrasonic vibration plate life;

5, the tube-shaped design allows easy installation of shock rods anywhere in the tank;







Tubular Equipment


Tubular Transducer




Ultrasound Output(W)

A Length






TB26-5 TB26-45L2-458 25-27 1000 458 Φ73/55 68000
TB26-4 TB26-45L2-624 25-27 1100 624 Φ73/55 68000
TB26-3 TB26-45L2-790 25-27 1200 790 Φ73/55 68000
TB26-2 TB26-45L2-957 25-27 1300 957 Φ73/55 68000
TB26-1 TB26-45L2-1123 25-27 1500 1123 Φ73/55 68000
TB26-5-2 TB26-45L4-910 25-27 2000 910 Φ73/55 132000
TB37-1 TB37-40D-295 36-38 300 295 Φ54/30 3600





Company introduction:


Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.


We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.







We accept paypal or T/T, western union etc.




Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.






Company pictures:



Vibration Ultrasonic Tubular Transducer For Biochemistry / Pharmaceutical Industry 0
