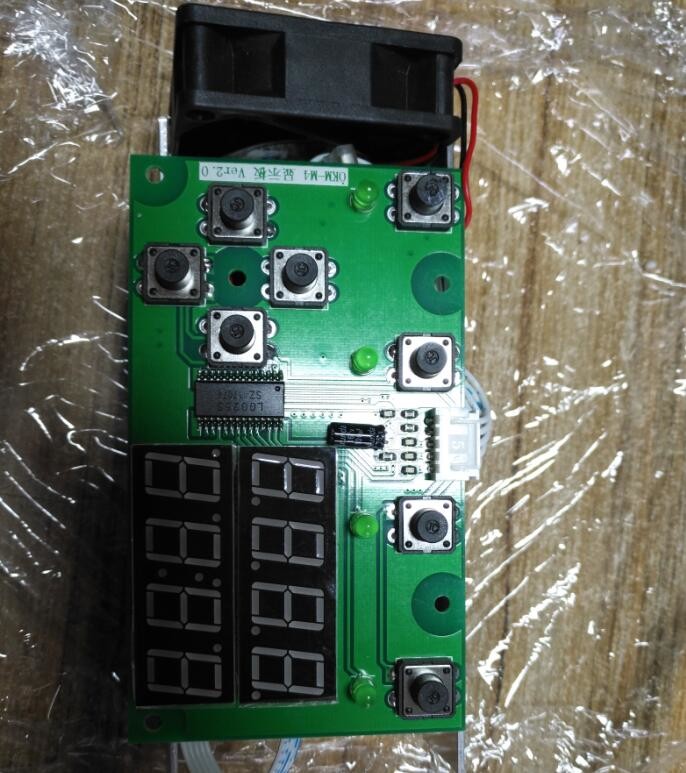

40 KHz Ultrasonic Frequency Generator Circuit Boards Drive Double Frequency Transducers
Double Frequency Circuit Boards Drive Ultrasonic double frequency Transducers
Detail
In harmony with the global ultrasonic industry and with over ten years of experience in researching and using ultrasonic products, we depend on a special power source for ultrasonic cleaners, which adopt advanced microcomputer control techniques and a bran-new ideas in circuit design and is widely applied in the ultrasonic cleaning industry.
Description
The generator generates a signal of a specific frequency. This signal may be a sine signal or a pulse signal. The specific frequency is the frequency at which the transducer operates.
Ultrasonic equipment generally uses ultrasound frequencies of 20 KHz, 25 KHz, 28 KHz, 33 KHz, 40 KHz, 60 KHz, 80 KHz, 100 KHz or more, but have not been used in large quantities.
Type |
X4-A-I |
X4-A -II |
X4-A-III |
X4-A-IV |
X4-M-V |
Driven power |
600W-900W |
900W-1500W |
1500W-2100W |
2100W-2700W |
3000W |
Power Control |
0-100% |
0-100% |
0-100% |
0-100% |
0-100% |
Working Frequency |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
Working voltage |
AC220V |
AC220V |
AC220V |
AC220V |
AC220V |
Max.numbers of |
12-18pcs 60W |
12-30pcs 60W |
12-42pcs 60W |
12-54pcs 60W |
12-60pcs 60W |
Rated Current |
0.1-0.17A |
0.1-0.17A |
0.1-0.17A |
0.1-0.14A |
0.1-0.14A |
Output Current |
1-3A |
1-4.5A |
1-6A |
1-7A |
1-7.5A |
Time Control |
0-59’59” |
0-59’59” |
0-59’59” |
0-59’59” |
0-59’59” |
Environment |
0-40℃ |
0-40℃ |
0-40℃ |
0-40℃ |
0-40℃ |
Relative Humidity |
40%-90% |
40%-90% |
40%-90% |
40%-90% |
40%-90% |
Net weight |
10KG |
11KG |
12KG |
12KG |
12KG |
Dimension (mm) |
390×350×130 |
390×350×130 |
390×350×130 |
390×350×130 |
390×350×130 |
Environment temperature:0-40C°
Relative humidity:40%--90%
Working frequency:28KHz(40 KHz,80 KHz,135 KHz) 5%
Range of power control: 0~100% Digital control and adjustment of 16 grades
Internal over temperature protection:65 C°
Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
