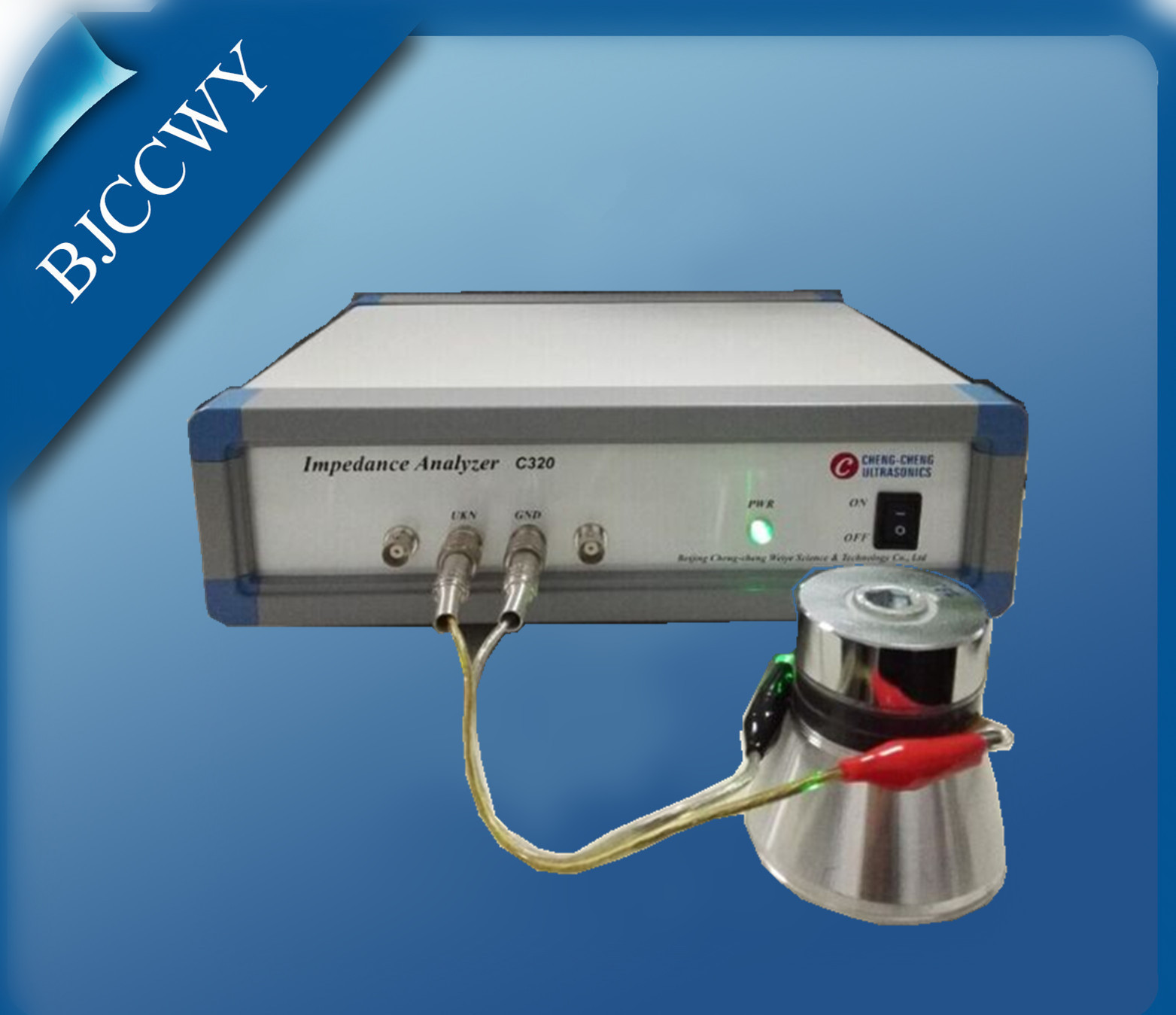

CE Ultrasonic Ananlyzer For Impedance And Frequency Of Transducer And Piezo Ceramics
Frequency Range: 1KHZ-1MHz
Min.Frequency Step: 0.1HZ
Measurement accuracy: < 0.5%
Measurement speed: five seconds per pieces(equivalent to 600 scan dots)
Frequency accuracy: ±5ppm
Phase Accuracy: 0.15 degree
Enviroment temperature: 10-40 cº
Impedance Range: 1Ω～1MΩ
Frequency step: less than 1MHZ
Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
|Measurement Index||All parameter, graphics|
|Measurement Accuracy||< 1%||< 0.5%|
10 second/piece(equivalent to 600 scan dots
5 second/piece(equivalent to 600 scan dots
|Phase Resolution||0.15 degree||0.15 degree|
|Enviroment temperature||10-40 cº||10-40 cº|
|Application||Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical||Inspection production line of piezoelectric ceramic below 1MHzø|
