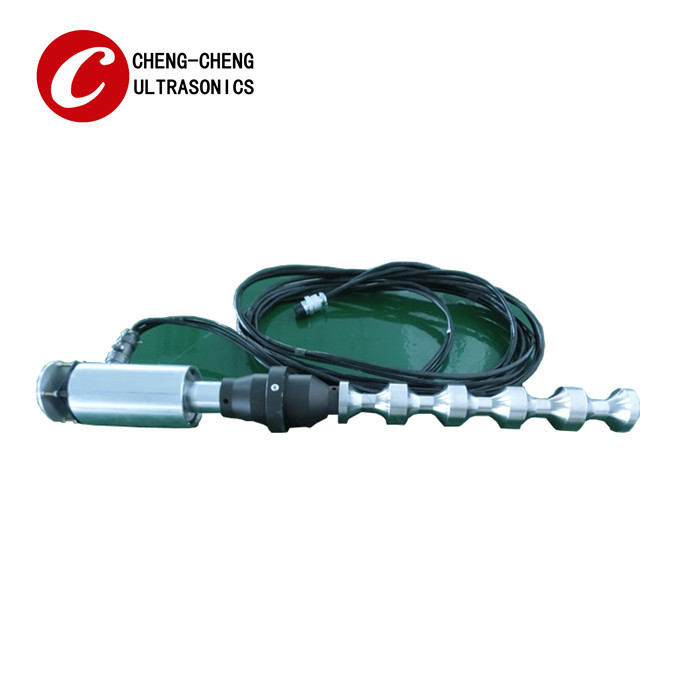

Stainless steel Ultrasonic tube transducer in ultrasonic cleaning
Description:
It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical industry. In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation, homogenization, refining and catalyzing reaction and it can increase production capacity. The tubular transducer equipment plays an important role in the even stirring of homogenates in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles. The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than tenfold. Therefore, it will have expansive applications in the petro-chemical industry.
Features
Since cavitation occurs on all outside areas of the tube, ultrasonic energy distribution in the tank is very uniform, with an excellent cleaning effect.
The output power of the tubular transducer equipment is not affected by the depth of solution, capacity of bath, variation of solution temperature and so on.
Thanks to structural tubular equipment, the application range is wider than a conventional transducer equipment. It is best matched to vacuum and high pressure cleaning and chemical processing.
It has one and half to two times the life can be maintained compare with conventional transducer equipment.
The round shape makes it possible to install very simply in every place so that the designing of the bath is simple.
The tube structure guarantees watertightness.
Specifications:
Tubular Equipment Type |
Tubular Transducer Type |
Frequency (KHz) |
Ultrasound Output(W) |
A Length (mm) |
Diameter (mm) |
Capacity (pF±10%) |
TB26-5 | TB26-45L2-458 | 25-27 | 1000 | 458 | Φ73/55 | 68000 |
TB26-4 | TB26-45L2-624 | 25-27 | 1100 | 624 | Φ73/55 | 68000 |
TB26-3 | TB26-45L2-790 | 25-27 | 1200 | 790 | Φ73/55 | 68000 |
TB26-2 | TB26-45L2-957 | 25-27 | 1300 | 957 | Φ73/55 | 68000 |
TB26-1 | TB26-45L2-1123 | 25-27 | 1500 | 1123 | Φ73/55 | 68000 |
TB26-5-2 | TB26-45L4-910 | 25-27 | 2000 | 910 | Φ73/55 | 132000 |
TB37-1 | TB37-40D-295 | 36-38 | 300 | 295 | Φ54/30 | 3600 |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.
Feature
1. Higher quality piezoelectric ceramic wafer guarantee strong and steady output of ultrasonic power;
2. High efficiency : high quality machine, high electro-acoustic conversion efficiency at the resonant frequencies;
4. High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most;
5. Heat-resistance: small resonant impedance, low heat, wide temperature range.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ROSH, ISO9001
