High Efficiency Ultrasonic Tube Transducer Using In Liquid Chemical Industry

1PCS
MOQ
High Efficiency Ultrasonic Tube Transducer Using In Liquid Chemical Industry
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

submersible ultrasonic transducer

,

ultrasonic cleaner transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

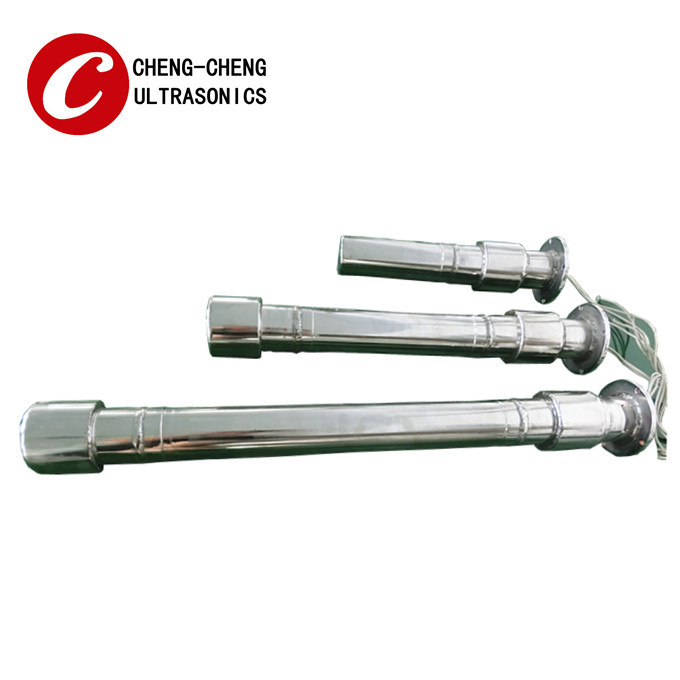

Ultrasonic tube transducer using in liquid chemical industry





Description:



It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical industry. In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation, homogenization, refining and catalyzing reaction and it can increase production capacity. The tubular transducer equipment plays an important role in the even stirring of homogenates in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles. The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than tenfold. Therefore, it will have expansive applications in the petro-chemical industry.



Specifications:










Tubular Equipment

Type

Tubular Transducer

Type

Frequency

(KHz)

Ultrasound Output(W)

A Length

(mm)

Diameter

(mm)

Capacity

(pF±10%)

TB26-5 TB26-45L2-458 25-27 1000 458 Φ73/55 68000
TB26-4 TB26-45L2-624 25-27 1100 624 Φ73/55 68000
TB26-3 TB26-45L2-790 25-27 1200 790 Φ73/55 68000
TB26-2 TB26-45L2-957 25-27 1300 957 Φ73/55 68000
TB26-1 TB26-45L2-1123 25-27 1500 1123 Φ73/55 68000
TB26-5-2 TB26-45L4-910 25-27 2000 910 Φ73/55 132000
TB37-1 TB37-40D-295 36-38 300 295 Φ54/30 3600

Company introduction:



Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.



We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.





Feature
1. Higher quality piezoelectric ceramic wafer guarantee strong and steady output of ultrasonic power;
2. High efficiency : high quality machine, high electro-acoustic conversion efficiency at the resonant frequencies;

4. High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most;
5. Heat-resistance: small resonant impedance, low heat, wide temperature range.







Payment:



We accept paypal or T/T, western union etc.





Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:



CE, ROSH, ISO9001
