Ultrasound microcomputer control and remote control techniques generator

1PCS
MOQ
Ultrasound microcomputer control and remote control techniques generator
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

ultrasonic power generator

,

ultrasonic signal generator

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

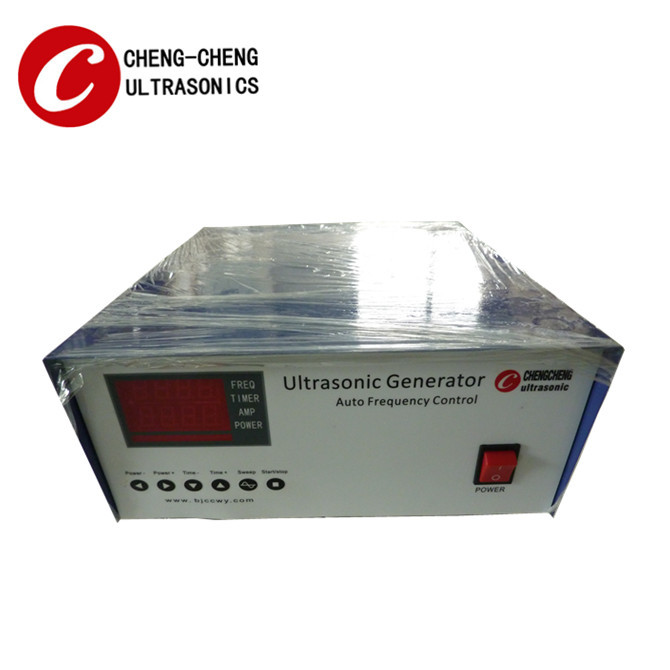

Ultrasound microcomputer control and remote control techniques generator



The ultrasonic generator is a kind of equipment for electric conversion high frequency alternating current transducer to drive the corresponding transducer work, high power ultrasonic system is an important part, which can also be called the electronic box, ultrasonic power supply, ultrasonic controller. Although the ultrasonic generator can also be called ultrasonic power supply, but in fact, the ultrasonic generator is only part of the ultrasonic drive power supply. The ultrasonic power supply according to incentive mode can be divided into self-excited and excitation, and the ultrasonic generator is that it refers to excitation type ultrasonic power, due to its excited oscillation circuit at the output power of a self-excited 10% higher, so most of the current ultrasonic generator was used as the driving power.



The input of the ultrasonic generator is a fixed frequency signal, the waveform of the signal is uncertain, sine and pulse, but the frequency is fixed to the frequency of the transducer, generally 20, 25, 28, 33, 40, 60KHz and so on. Through the internal conversion of ultrasonic generator, its output is power signal, frequency tracking signal and so on.



Driven power 600W-900W 900W-1500W 1500W-2100W 2100W-2700W 3000W

Power Control

(Adjustable)

0-100% 0-100% 0-100% 0-100% 0-100%
Working Frequency 25KHZ-40KHZ 25KHZ-40KHZ 25KHZ-40KHZ 25KHZ-40KHZ 25KHZ-40KHZ
Working voltage AC220V 10% 50HZ AC220V 10% 50HZ AC220V 10% 50HZ AC220V 10% 50HZ AC220V 10% 50HZ

Max.numbers of

transducers

12-18 pcs 60W 12-30 pcs 60W 12-42 pcs 60W 12-54 pcs 60W 12-60 pcs 60W

Rated Current

per transducer

0.1-0.17A 0.1-0.17A 0.1-0.17A 0.1-0.14A 0.1-0.14A

Output Current

range

1-3A 1-4.5A 1-6A 1-7A 1-7.5A

Time Control

Range

0-59’59” 0-59’59” 0-59’59” 0-59’59” 0-59’59”

Environment

temperature

0-40℃ 0-40℃ 0-40℃ 0-40℃ 0-40℃
Relative Humidity 40%-90% 40%-90% 40%-90% 40%-90% 40%-90%
Net weight 10KG 11KG 12KG 12KG 12KG
Dimension (mm) 390×350×130 390×350×130 390×350×130 390×350×130 390×350×130



Feature
1. The piezoelectric ceramic chip adopts high quality parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.





Application

1. To achieve high accuracy, high mesh screening at the same time,

    the control of a narrow particle size range.

2. Can be used single layer and multilayer.

3. Screen self-cleaning function: greater than 500 mesh sieve,

    no mesh plug, no attenuation screening efficiency.

4. Solve the strong adsorption, easy to reunite, electrostatic, high precision,

    high density, high light specific gravity and other screening problem.

5. Screening accuracy can improve the 1-70%, yield can increase 0.5 to 10 times.







Company introduction:



Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.



Payment:



We accept paypal or T/T, western union etc.





Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:



CE, ISO9001, ROSH



Company pictures:



Ultrasound microcomputer control and remote control techniques generator 0
