Stainless Steel Submersible Ultrasonic Tubular Transducer For Vacuum Pressure Cleaning

Stainless Steel Submersible Ultrasonic Tubular Transducer For Vacuum Pressure Cleaning

Large Image :  Stainless Steel Submersible Ultrasonic Tubular Transducer For Vacuum Pressure Cleaning

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $2000-3000
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description

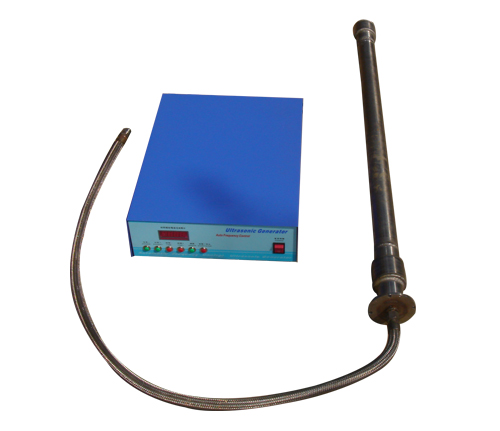

Stainless Steel Ultrasonic Tubular Submersible Transducer for Vacuum Pressure Cleaning



It has more than two times working life comparing with standard submersible transducer, Ultrasonic wave along the longitudinal axis of the vibration rod is converted to radial vibration by the longitudinal motion , 360 degree ultrasound
suitable for vacuum pressure cleaning, High pressure resistant up to 10 bar;
The output power of the tubular transducer is not affected by the depth of container, capacity of container, variation of temperature and so on.
Suitable for chemical treatment;
Stainless steel 316 material resistance to acid and alkali resistance, light, easy to install .





Stainless Steel Submersible Ultrasonic Tubular Transducer For Vacuum Pressure Cleaning

Description Stainless Steel Ultrasonic Tubular Transducer  :



Since cavitation occurs on all outside areas of the tube, ultrasonic energy distribution in the tank is very uniform, with an excellent cleaning effect.

The output power of the tubular transducer equipment is not affected by the depth of solution, capacity of bath, variation of solution temperature and so on.

Thanks to structural tubular equipment, the application range is wider than a conventional transducer equipment. It is best matched to vacuum and high pressure cleaning and chemical processing.

It has one and half to two times the life can be maintained compare with conventional transducer equipment.

The round shape makes it possible to install very simply in every place so that the designing of the bath is simple.

The tube structure guarantees watertightness.







Stainless Steel Ultrasonic Tubular Transducer :



It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical industry. In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation, homogenization, refining and catalyzing reaction and it can increase production capacity. The tubular transducer equipment plays an important role in the even stirring of homogenates in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles. The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than tenfold. Therefore, it will have expansive applications in the petro-chemical industry.







Competitive Advantage :



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:



Stainless Steel Submersible Ultrasonic Tubular Transducer For Vacuum Pressure Cleaning
