Piezoelectric Without Screw Hole Ultrasonic Transducer Cleaner Metal Rust

Piezoelectric Without Screw Hole Ultrasonic Transducer Cleaner Metal Rust

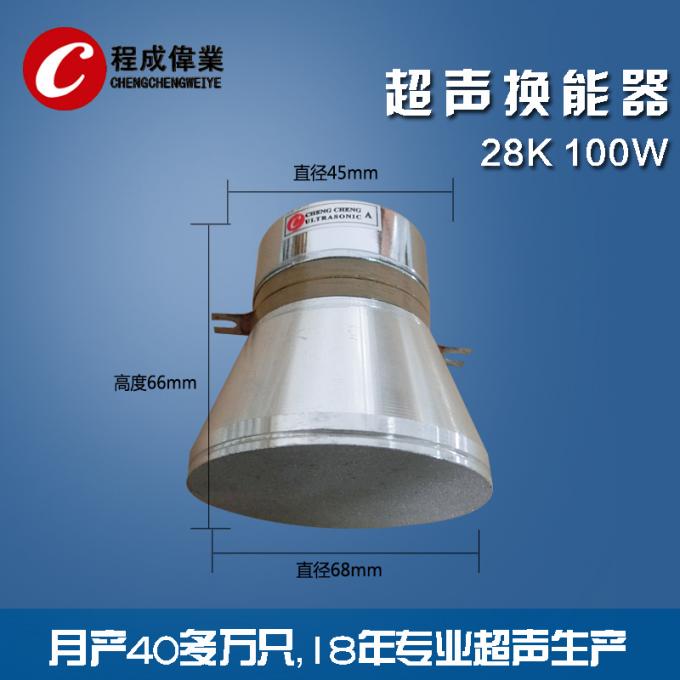

Large Image :  Piezoelectric Without Screw Hole Ultrasonic Transducer Cleaner Metal Rust

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Item: CCH-6845D-25LB Pzt-4 Length(mm): 77
Weight(g): 710 Frequency(KHZ): 25
Resonance Impedance: 10-20 Ω Input Power(w): 100

100w 28KHZ Low Frequency Without Screw Hole Cleaning Transducer Clean Metal Rust



.





Description



28khz100w ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:







Piezoelectric Without Screw Hole Ultrasonic Transducer Cleaner Metal Rust



Specifications



28khz100w ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-28LA

PZT-8

66

625

28

10-20

5200

100



Competitive Advantage



28khz100w ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

Piezoelectric Without Screw Hole Ultrasonic Transducer Cleaner Metal Rust
