25 Khz Frequency Cleaning Ultrasonic Piezo Transducer

1PCS
MOQ
25 Khz Frequency Cleaning Ultrasonic Piezo Transducer
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CCH-6845D-25LB Pzt-4
Length(mm): 77
Weight(g): 710
Frequency(KHZ): 25
Resonance Impedance: 10-20 Ω
Input Power(w): 100
High Light:

25 khz frequency ultrasonic piezo transducer

,

waterproof ultrasonic piezo transducer

,

ultrasonic transducer 25khz 100w

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



25 KHZ Frequency Cleaning ultrasonic piezo transducer  ultrasonic transducer



Quick Detail



25khz 100w ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.





Description



25khz100w ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:

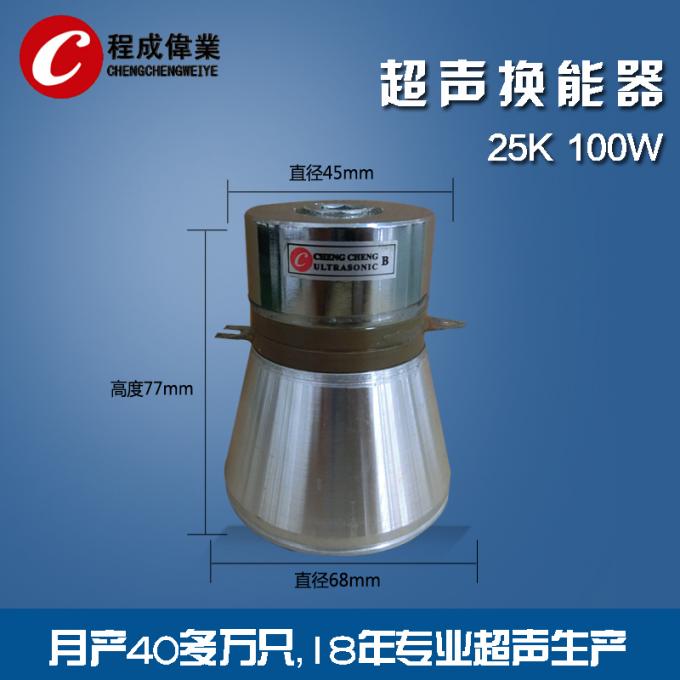

25 Khz Frequency Cleaning Ultrasonic Piezo Transducer 0



25 Khz Frequency Cleaning Ultrasonic Piezo Transducer 1



Specifications



25khz100w ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-25LB

PZT-4

77

710

25

10-20

6600

100



Competitive Advantage



25khz100w ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

25 Khz Frequency Cleaning Ultrasonic Piezo Transducer 2
