High Efficiency High Power Ultrasonic Transducer , Piezoelectric Pressure Transducer

High Efficiency High Power Ultrasonic Transducer , Piezoelectric Pressure Transducer

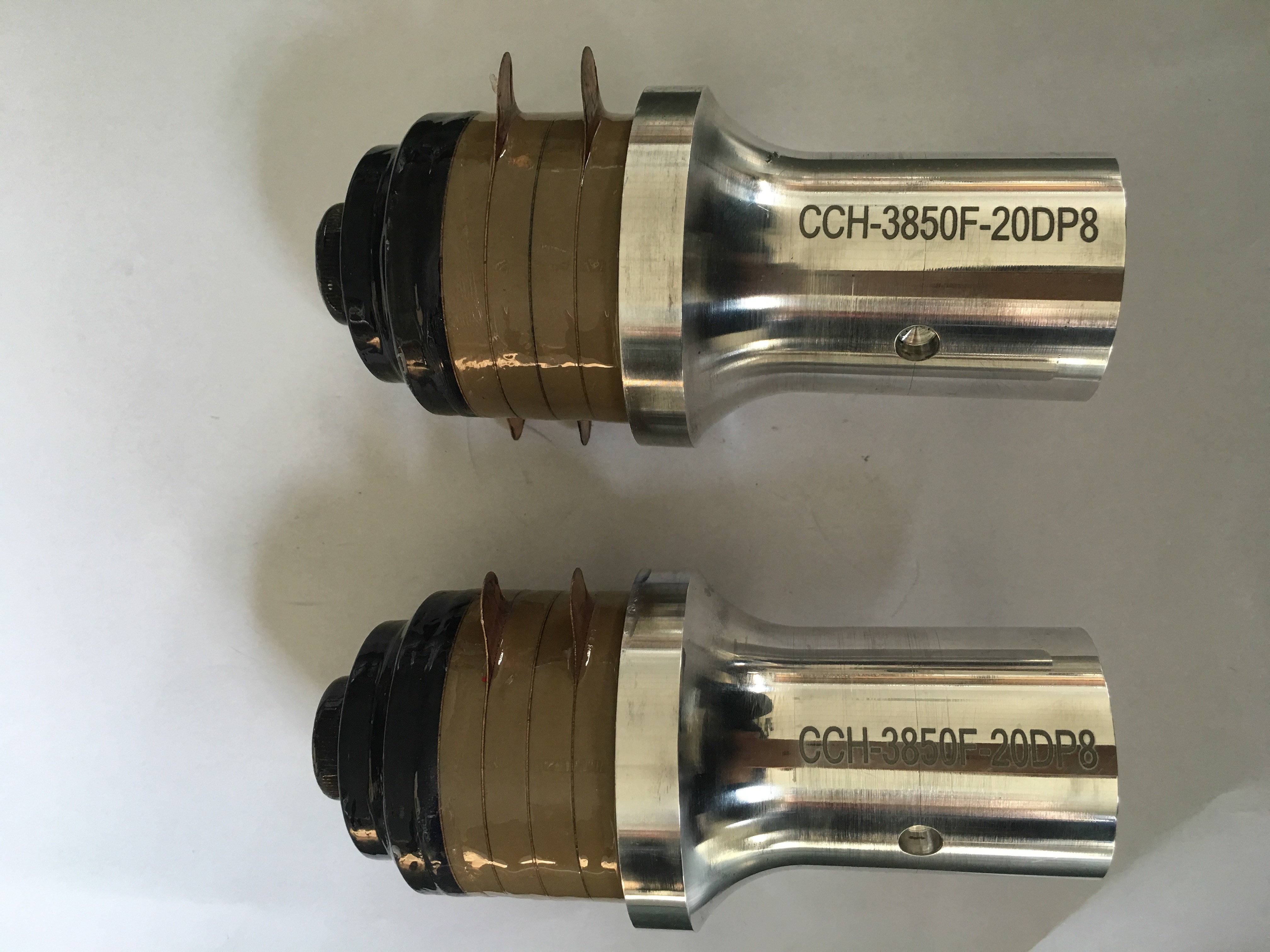

Large Image :  High Efficiency High Power Ultrasonic Transducer , Piezoelectric Pressure Transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description



High Efficiency High Power Ultrasonic Transducer , Piezoelectric Pressure Transducer





Quick Detail Ultrasonic Transducer:



High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.





Description of Ultrasonic Transducer:



◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications of Ultrasonic Transducer:



widely used in ultrasonic welding machine.ultrasonic polishing machine and ultrasonic drilling machine.

Strong cavitations,powerful and effective, quick detergence.
Automotive and aerospace industry,mechanical industry,plating industry etc.





Specifications of 15KHZ2500W  Ultrasonic Transducer:



Type

Full-length(mm)

Joint Bolt(mm)

Frequency(KHz)



Resonance Impedance(Ω)



Capacity(pF)



Input Power

(W)

CCH-7070F-

15Z P8



153



M20×1.5



15



15



13000



2500

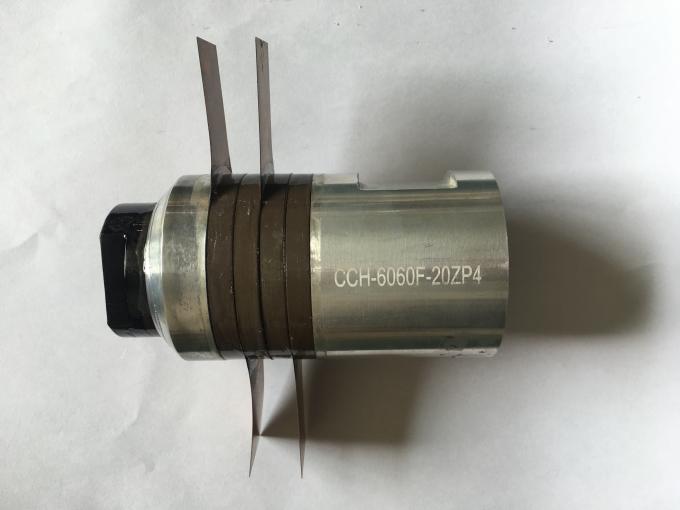

High Efficiency High Power Ultrasonic Transducer , Piezoelectric Pressure Transducer



Competitive Advantage of  Ultrasonic Transducer:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:



High Efficiency High Power Ultrasonic Transducer , Piezoelectric Pressure Transducer
