28K 100W Piezoelectric Ultrasonic Transducer Detection Equipment Imaging in Medical

28K 100W Piezoelectric Ultrasonic Transducer Detection Equipment Imaging in Medical

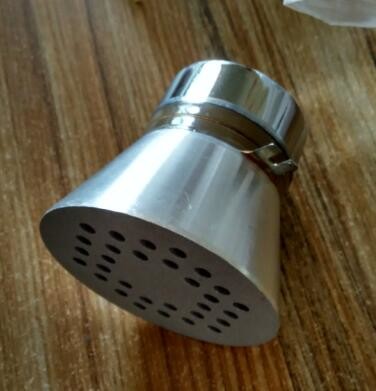

Large Image :  28K 100W Piezoelectric Ultrasonic Transducer Detection Equipment Imaging in Medical

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description



28K 100W Piezoelectric Ultrasonic Transducer Detection Equipment Imaging in Medical





Description:



Ultrasonic transducers are widely used in industry, agriculture, transportation, life, medical, military and so on. According to the realization of the function is divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, detection, monitoring, remote sensing and remote control; according to the working environment is divided into liquid, gas, and other organisms; are divided into power ultrasonic, ultrasonic detection, ultrasonic imaging etc..



Specifications:



NO. Type Length

(mm)
Weigh

(g)
Frequency

(KHz)
Resonance
Impedance
(Ω)
Static
Capacity
(pF)±10%
Input
Power
(W)
1 CCH-6845D-20LA PZT-8 95 910 20 20-40 5000 100
2 CCH-6850D-28LB PZT-4 67 666 28 10--25 7000 120
3 CCH-6845D-28LA PZT-8 66 625 28 10--25 5000 100
4 CCH-6845D-28LB PZT-4 66 624 28 10--25 6600 100
5 CCH-5838D-25LB PZT-4 76 524 25 10--25 5400 60
6 CCH-5938D-25LA  PZT-8 65 525 25 10--25 3800 60
7 CCH-5938D-28LB  PZF-4 66 510 28 10--25 3800 60
8 CCH-4535D-28ZB
PZT-4
82 425 28 10--25 4100 50
9 CCH-6845D-30L
PZT-8
61 550 30 10--25 5000 100
10 CCH-4838D-33LA  PZT-8 58 420 33 10--25 3800 60
11 CCH-5038D-40LA  PZT-8 54 300 40 10--25 3800 60
12 CCH-4535D-40LB PZT-4 57 300 40 10--25 4100 50
13 CCH-4838D-40ZB
PZT-8
56 310 40 10--25 3800 60
14 CCH-4838S-50LA  PZT-4 40 160 50 30-60 2100 30
15 CCH-3830D-54LA PZT-4 36 135 54 10--25 3200 35
16 CCH-4938D-68ZB PZT-8 79 535 68 15-30 3800 60
17 CCH-5250D-68ZB PZT-4 67 588 68 15-30 7000 120
18 CCH-4038D-80ZB PZT-4 53 290 80 15-30 5400 60
19 CCH-4838D-120ZB PZT-4 57 255 120 15-30 5400 60
20 CCH-4535D-135ZB PZT-4 28 215 135 15-30 4200 50
21 CCH-5038D-25(40)LB PZT-8 65 442 25 and 40 15-30 3800 60
22 CCH-3830D-200LA  PZT-4 42 135 200 15-30 3200 30







Company introduction:



Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.



We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.





Feature
1. Higher quality piezoelectric ceramic wafer guarantee strong and steady output of ultrasonic power;
2. High efficiency : high quality machine, high electro-acoustic conversion efficiency at the resonant frequencies;

4. High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most;
5. Heat-resistance: small resonant impedance, low heat, wide temperature range.







Payment:



We accept paypal or T/T, western union etc.





Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:



CE, ROSH, ISO9001



Company pictures:







28K 100W Piezoelectric Ultrasonic Transducer Detection Equipment Imaging in Medical
